ECO-Skate ROTO RN Series

360° rotational skates

360° skates with nylon wheels from 2.7 to 7 tons capacity

Scroll Down

New for 2016

Scroll Down
Click an image to enlarge →RN27Roto SkatesRN45
TypeRN27RN36RN45
Part number10.027.01.4010.036.01.4010.045.01.40
Capacity (lbs.)5,9507,9009,900
Wheel size (inch), material3.3" X 3.4" Nylon3.3" X 3.4" Nylon3.3" X 3.4" Nylon
Number of wheels345
Load area (inch)5.9"6.7"8.6"
Dimensions L/L* x W x H (inch)15.3"/17.6" X 16.3" X 4.3"16.9"/19.2" X 16.3" X 4.3"21.9"/24.4" X 22.3" X 4.3"
Weight (lbs.)426286

360° skates with nylon wheels and adapter for alignment or steering bars from 2.7 to 7 tons capacity

Scroll Down

New for 2016

Scroll Down

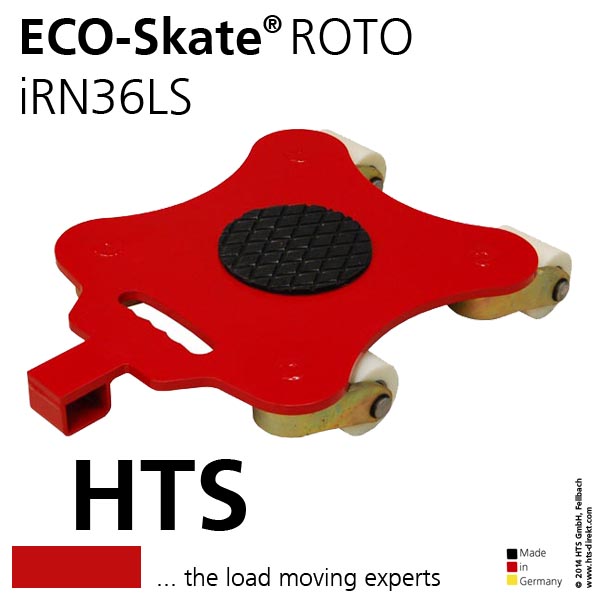

Click an image to enlarge →RN27lSRN36LSRN45LS
TypeRN27LSRN36LSRN45LS
Part number10.027.01.4110.036.01.4110.045.01.41
Capacity (lbs.)5,9507,9009,900
Wheel size (inch), material3.3" X 3.4" Nylon3.3" X 3.4" Nylon3.3" X 3.4"
Number of wheels345
Load area (inch)5.9"6.7"8.6"
Dimensions L/L* x W x H (inch)20.3"/22.6" X 16.3" X 4.3"21.9"/24.3" X 16.3" X 4.3"26.5"/29" X 22.3" X 4.3"
Weight (lbs.)446490

Additional 360° ROTO Skates with up to 7 tons capacity

also available nickel plated for cleanroom applications

Scroll Down
Click an image to enlarge →RXN7LSCR Series
TypeRXN7LSCR-Series
Part number10.070.03.41

Find out more about our nickle plated skates which can be used in clean rooms and the food industry.

Capacity (lbs.)15,400
Wheel size (mm), material5.5" X 5.3"
Number of wheels3
Wheels lockableYes
Load area (inch)10"
Dimensions L/L* x W x H (inch)36.3"/39.3" X 25.6" X 7.1"
Weight (lbs.)188.5

*L=Length with wheel facing to the back outside the frame

Options for ECO-Skate ROTO RN Series LS 360°

Scroll Down
Click an image to enlarge →ROTO Deichsel NUR GriffROTO Deischel Anhaengeoese Adapter BolzenROTO Deischel Anhaengeoese Adapter GriffROTO VerbindungsstangeROTO Verbindungsstange mit Aufnahme
Type
Part number100.009.030100.009.035100.009.036940.620.920940.025.200
Dimensions13.7" x 1.2" x 39.4"3.94" x 1.2" x 43.3"13.8" x 1.2" x 39.4"1.57" x 1" x 78.7"2.75" x 1" x 78.7"

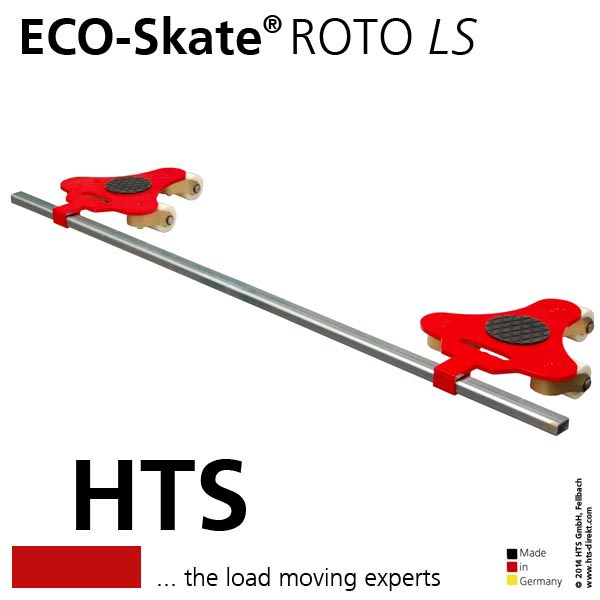

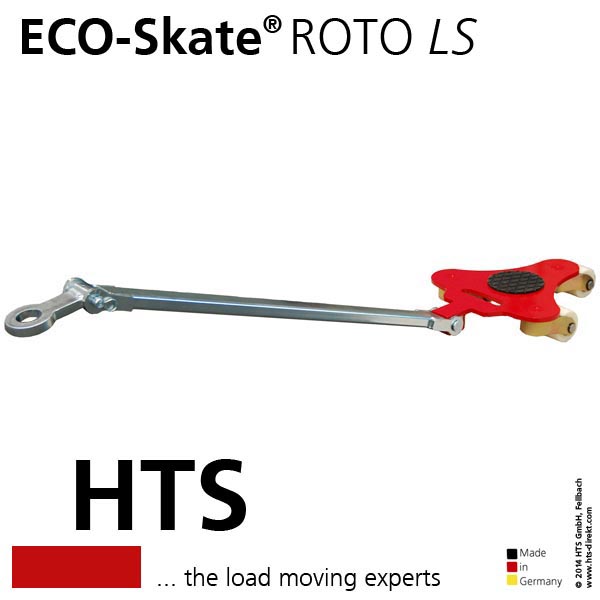

DescriptionSteering bar with Handle and ROTO adapterSteering bar with pulling eye and ROTO adapterSteering bar with handle and pulling eye and ROTO adapterAlignment bar ROTO*Alignment bar ROTO with a steering bar connector*

*other length on request, **Pictured with optional steering handles and alignment bar

An ECO-Skate ROTO System has a minimum of four skates. The ROTO skates can be also be combined with all other suitable ECO-Skates. The load can be rotated by 360° for greater flexibility and an easier move.

Features

ECO-Skate 360° ROTO RN Series skates have the following features:

  • Combinable
    All ECO-Skate ROTO load moving systems can be combined with the ECO-Skate      i-Series, iN-Series and DUO.
    The sum from each skate equals the total carrying capacity.
  • HTS Nylon Wheels
    All RN Series Roto skates are standard equipped with wear resistant HTS nylon wheels, providing minimal rolling resistance. They are available as spare parts for other manufactured skates as well.

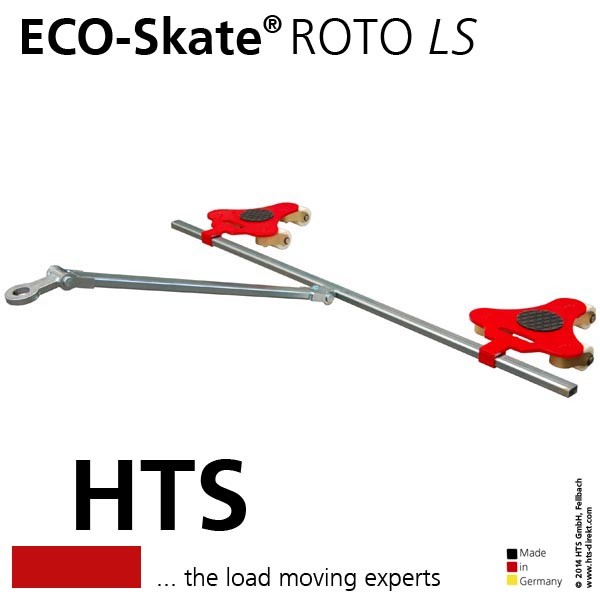

  • Steering and alignment bar
    The ROTO LS series is equipped with an adapter for steering and alignment bars. Special lengths are available on request.

For all cases where a standard product is not sufficient, we offer special tailor made solutions to fit the customers needs.

R40

An Example for a ROTO CUSTOM Skate

Scroll Down

ROTO XL SPECIAL: RXNS6LSH

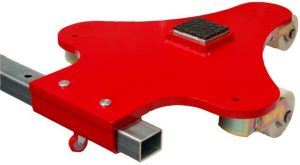

Machine Moving Skate IRN60S

Special tailor made solution for a customer in the food industry where machines have to be moved quickly and efficiently from the production line and placed back into position after servicing.

Heavy load 360° ROTO Skate with 6 ton carrying capacity and integrated lifting solution, controlled by an external pump and linked to an ECO-Jack SYNCRO pressure block, for synchronized lifting and lowering. The wheels can be blocks for better maneuverability and the single skates can be linked with alignment bars.
