| Click an image to enlarge → |  |  |
|---|---|---|

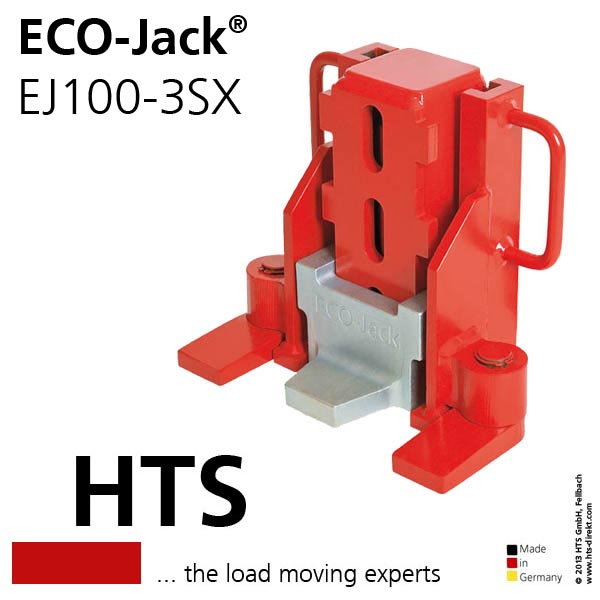

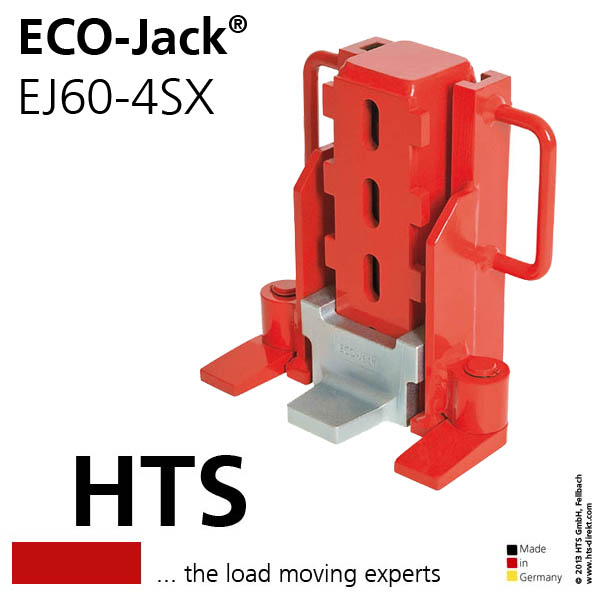

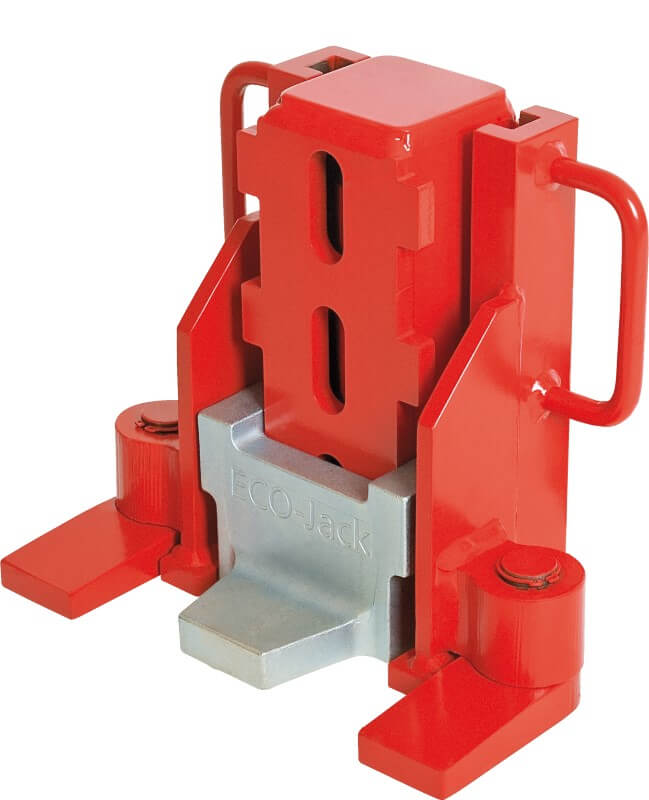

| Type | EJ60-4SX | EJ100-3SX |
| Part number | 01.060.41.03 | 01.100.31.03 |
| Capacity (lbs.) | 13,200 | 22,000 |
| Working pressure (bar/psi) | 520/7,425 | 520/7,425 |
| Claw height (inch) | 0.6 | 0.8 |
| Adjustability (inch) | 4 x 2.3" | 3 x 2.9" |
| Stroke (inch) | 5.5" | 5.5" |
| Dimensions L x W x H (inch) | 6.3" x 9.0" x 9.9" | 7.6" x 10.9" x 9.5" |
| Weight (lbs.) | 28 | 48 |
| Click an image to enlarge → |  |  |  |
|---|---|---|---|

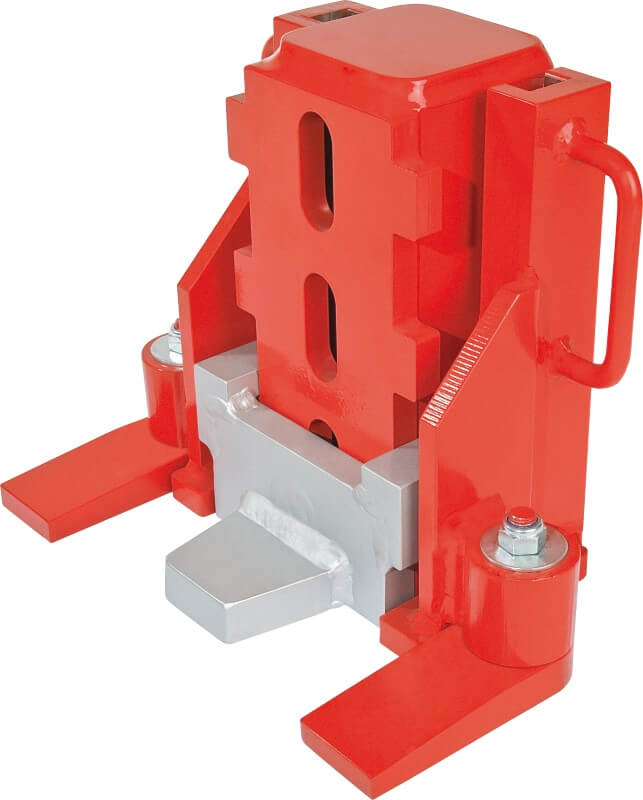

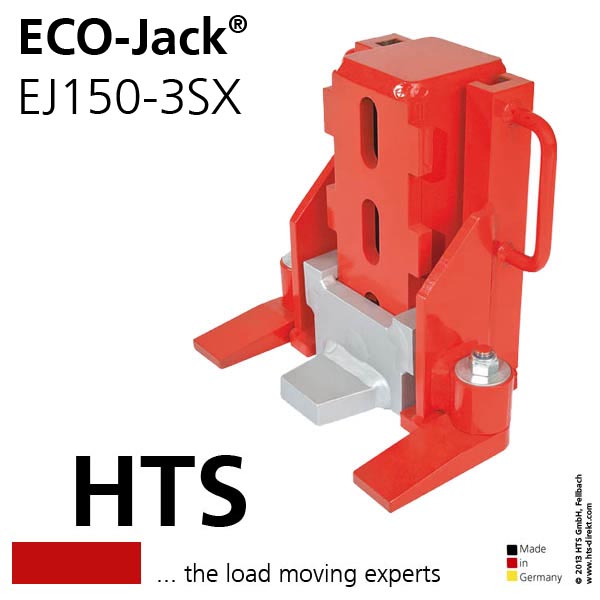

| Type | EJ150-3SX | EJ 250-3SX | CR-Series |
| Part number | 01.150.31.03 | 01.250.31.03 | Find out more about our |
| Capacity (lbs.) | 33,000 | 55,000 | |
| Working pressure (bar/psi) | 520/7,425 | 520/7,425 | |
| Claw height (inch) | 1.0 | 1.2 | |
| Adjustability (inch) | 3 x 3.8" | 3 x 3.9" | |
| Stroke (inch) | 5.5" | 5.5" | |
| Dimensions L x W x H (inch) | 9.6" x 12.9" x 12.5" | 10.9" x 15.2" x 13.0" | |
| Weight (lbs.) | 84 | 132 |
Features

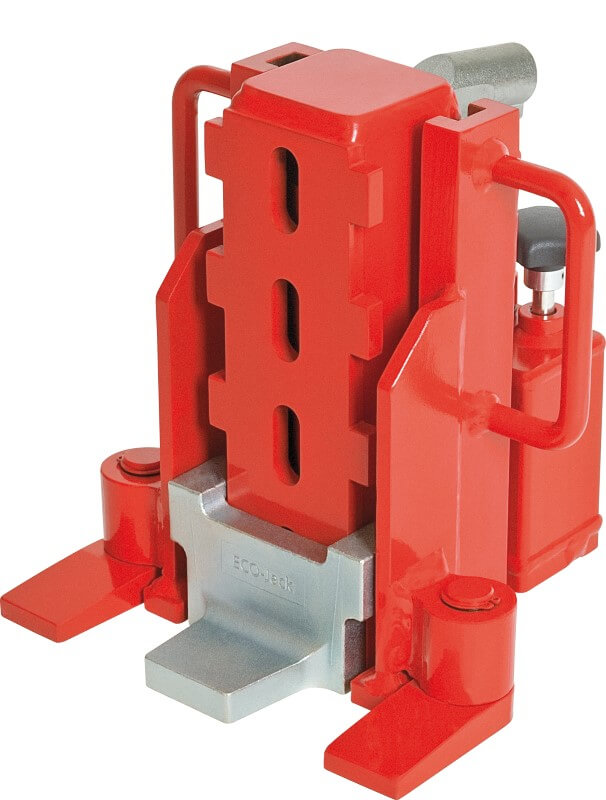

Unlike the ECO-Jack S-Series an external pump is required to operate the ECO-Jack SX-Series. This easens and speeds up the lifting process, particularly when using more than one jack simultaneously, or when used in confined work areas. Due to its compact design (without a pump) its weight could be reduced up to 30% and is therefore very easy to handle even in the most extreme circumstances. It is possible for one person to operate and control several ECO-Jack SX-Series simultaneously when used in conjunction with a mechanical or electrical external pump.
ECO-Jack universal toe jacks feature
- the patented lifting claw. It ensures a safe lifting of heavy goods and can be switched to another position with just one hand without the need of tilting movements.
- a minimal self-weight. Due to improved design and the use of high quality material, the self-weight of the jacks could be reduced up to 30% compared to jacks with integrated pumps.
- precision milled guides made of high resistant and high quality materials. They guarantee a precise lifting and lowering motion, thus ensuring a long product life.
- strong swiveling legs which ensure a safe lifting process and prevent the jack from tipping over.
- an external hose coupler as standard. The drip free male hose coupler enables the user to attach an external pump.
- Due to the side mounted grab handles the positioning of the jack is very easy.
For all cases where a standard product is not sufficient, we offer special tailor made solutions to fit the customers needs.
