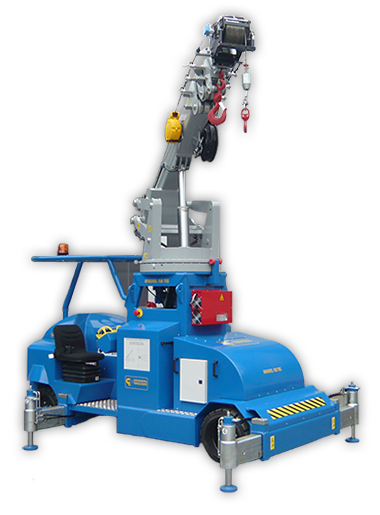

The Minidrel B-Series have lifting capacities between 4 and 25 tons. They can handle loads of every weight and dimension and reach heights that were previously impossible, thanks to a patented kinematics system and their compact construction. These mobile cranes are suitable for indoor and outdoor use in both civil and industrial environments. Precision handling is assured, even in restricted areas, thanks to the rotating boom with 180 degree to the left and right as well as the hydraulic controls.
The Minidrel B-Series offers maximum drive power due to 4×2, 4×4 or 6×6 traction and adjustable speed for all manoeuvres. Each wheel has a propeller unit powered by independent hydraulic motors. Special long-life batteries and competitive maintenance costs ensure a long life of the product.
Minidrel 50 B
Minidrel 125 B
MInidrel 150 B
 |  | | |
|---|---|---|---|
| Type | 50B | 75B | 90B |
| Part number | 61.01.050.01 | 61.01.075.01 | 61.01.090.01 |
| Max. capacity (kg) | 5.000 | 7.500 | 9.000 |
| Displaceable load (kg) | 5.000 | 7.500 | 9.000 |
| Telescopic extension (m) | 5,70 | 5,70 | 5,70 |
| Lifting height (m) | 8,50 | 8,50 | 8,00 |
| Width (mm) | 1.350 | 1.350 | 1.500 |
| Wheel base (mm) | 2.400 | 2.750 | 2.900 |
| Dimensions L x B x H (m) | 3,22 x 1,35 x 2,28 | 3,65 x 1,35 x 2,38 | 3,81 x 1,50 x 2,42 |
| Weight (kg) | 4.300 | 5.700 | 8.800 |
 |  |  | |
|---|---|---|---|
| Type | 125B | 150B | 250B |
| Part number | 61.01.125.01 | 61.01.150.01 | 61.01.250.01 |
| Max. capacity (kg) | 12.500 | 15.000 | 25.000 |
| Displaceable load (kg) | 12.500 | 15.000 | 25.000 |
| Telescopic extension (m) | 5,70 | 5,70 | 9,50 |
| Lifting height (m) | 8,50 | 8,50 | 10,50 |
| Width (mm) | 1.850 | 1.850 | 2.200 |
| Wheel base (mm) | 3.000 | 3.500 | 3.750 |
| Dimensions L x B x H (m) | 3,92 x 1,85 x 2,49 | 4,25 x 1,85 x 2,49 | 5,05 x 2,20 x 2,50 |
| Weight (kg) | 12.500 | 15.300 | 21.700 |
Minidrel B Model STD with front stabilazors
Scroll Down | | | |
|---|---|---|---|
| Type | 50B-STD | 75B-STD | 90B-STD |
| Part number | 61.01.050.02 | 61.01.075.02 | 61.01.090.02 |
| Max. capacity (kg) | 5.000 | 7.500 | 9.000 |
| Displaceable load (kg) | 5.000 | 7.500 | on request |
| Telescopic extension (m) | 5,70 | 5,70 | on request |
| Lifting height (m) | 8,50 | 8,50 | on request |
| Width (mm) | 1.350 | 1.350 | on request |
| Wheel base (mm) | 2.180 | 2.400 | on request |
| Dimensions L x B x H (m) | 3,06 x 1,35 x 2,28 | 3,37 x 1,35 x 2,38 | on request |
| Weight (kg) | 4.300 | 6.300 | on request |
| | | |
|---|---|---|---|
| Type | 125B-STD | 150B-STD | 250B-STD |
| Part number | 61.01.125.02 | 61.01.150.02 | 61.01.250.02 |
| Max. capacity (kg) | 12.500 | 15.000 | 25.000 |
| Displaceable load (kg) | 10.000 | 12.000 | 20.000 |
| Telescopic extension (m) | 5,70 | 5,70 | 9,50 |
| Lifting height (m) | 8,50 | 8,50 | 10,50 |
| Width (mm) | 1.850 | 1.850 | 2.300 |
| Wheel base (mm) | 2.500 | 2.500 | 3.250 |
| Dimensions L x B x H (m) | 3,62 x 1,85 x 2,49 | 3,62 x 1,85 x 2,49 | 4,55 x 2,20 x 2,50 |
| Weight (kg) | 12.500 | 15.300 | 21.700 |
 |  | | |
|---|---|---|---|
| Type | 50B-TRS | 75B-TRS | 90B-TRS |
| Part number | 61.01.050.03 | 61.01.075.03 | 61.01.090.03 |
| Max. capacity (kg) | 5.000 | 7.500 | 9.000 |
| Displaceable load (kg) | 5.000 | 7.500 | on request |
| Telescopic extension (m) | 5,70 | 5,70 | on request |
| Lifting height (m) | 8,50 | 8,50 | on request |
| Width (mm) | 1.700 | 1.350 | on request |
| Wheel base (mm) | 2.180 | 2.400 | on request |
| Dimensions L x B x H (m) | 3,06 x 1,70 x 2,53 | 3,32 x 1,75 x 2,53 | on request |
| Weight (kg) | 5.700 | 8.250 | on request |
 | |  | |
|---|---|---|---|
| Type | 125B-TRS | 150B-TRS | 250B-TRS |
| Part number | 61.01.125.03 | 61.01.150.03 | 61.01.250.03 |
| Max. capacity (kg) | 12.500 | 15.000 | 25.000 |
| Displaceable load (kg) | 12.500 | on request | 20.000 |
| Telescopic extension (m) | on request | on request | 9,50 |
| Lifting height (m) | on request | on request | 10,50 |
| Width (mm) | on request | on request | 2.300 |
| Wheel base (mm) | on request | on request | 3.250 |
| Dimensions L x B x H (m) | on request | on request | 4,55 x 2,30 x 2,50 |
| Weight (kg) | on request | on request | 24.500 |
Operational features
Scroll Down
- Hydraulic control carriage stabilisation
- Hydraulically servo-assisted translation, lifting, extraction and steering
- Wheel steering with squared system
- Proportional speed regulator
- Hydro-braking bench with controlled deceleration
- Patented anti-tilting control
Foldable Jib, manually adjusted
Remote control with cable
Foldable Jib, hydrauliclly controlled jib articulation
Radio remote control with Joysticks
Electro-hydraulic winches
Dynamometer weighing with display in control panel or in the remote control unit
Additional options
Scroll Down- Incorporated battery charger
- Bespoke lifting height and telescopic arm
- Automatic wheel load divider for fragile flooring
- Eye bolts for load gripping
- Specials and tailor made solutions on request.
