Features
Scroll Down
- 5:1 Safety factor
- 200% proof load tested
- Serial numbers for traceability
- Rotates 360° and swivels 180°
- Magnetic particle inspected
- Easy mounting, only one thread or hole is required
Specifications
Scroll Down
| Part Number | Type | Capacity SF* 5:1 (kg) | Capacity SF* 4:1 (kg) | Thread | Dimensions (mm) | max. Torque (Nm) | Weight (kg) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

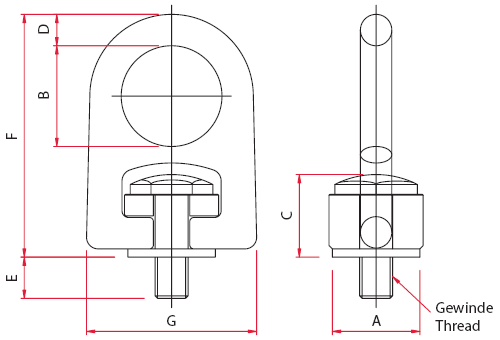

| A | B | C | D | E | F | G | |||||||
| 200.056.912 | HD 400 | 400 | 500 | M8 | 32 | 36 | 30 | 11 | 15 | 84 | 61 | 9 | 0,35 |
| 200.056.916 | HD 500 | 500 | 625 | M10 | 32 | 36 | 30 | 11 | 15 | 84 | 61 | 16 | 0,35 |
| 200.056.924 | HD 1050 | 1.050 | 1.312 | M12 | 54 | 61 | 50 | 19 | 25 | 142 | 103 | 37 | 1,80 |
| 200.056 | HD 1900 | 1.900 | 2.375 | M16 | 54 | 61 | 50 | 19 | 25 | 142 | 103 | 80 | 1,80 |
| 200.056.936 | HD 2150 | 2.150 | 2.687 | M20 | 54 | 61 | 50 | 19 | 25 | 142 | 103 | 135 | 1,80 |
| 200.056.942 | HD 3000 | 3.000 | 3.750 | M20 | 71 | 82 | 67 | 25 | 30 | 190 | 138 | 135 | 4,10 |
| 200.056.948 | HD 4200 | 4.200 | 5.250 | M24 | 71 | 82 | 67 | 25 | 40 | 190 | 138 | 311 | 4,10 |
| 200.056.949 | HD 4500 | 4.500 | 5.625 | M30 | 71 | 82 | 67 | 25 | 40 | 130 | 138 | 637 | 4,10 |
| 200.056.956 | HD 7000 | 7.000 | 8.750 | M30 | 89 | 102 | 84 | 32 | 50 | 238 | 172 | 637 | 8,70 |
| 200.056.966 | HD 11000 | 11.000 | 13.750 | M36 | 89 | 102 | 84 | 32 | 65 | 238 | 172 | 1085 | 9,10 |
| 200.056.968 | HD 12500 | 12.500 | 15.625 | M42 | 89 | 102 | 84 | 32 | 80 | 238 | 172 | 1085 | 9,60 |
Read safety instructions! Imperial sizes on request. Technical changes and misconceptions reserved.
