ECO-Skate XL

The extra large load moving system
32 tons - 128 tons
polyurethane wheels

16 tons as single

32 tons carrying capacity as a set

Scroll Down

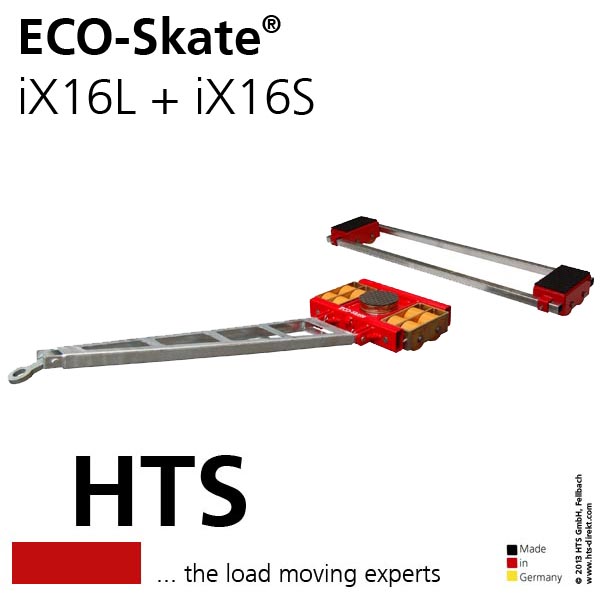

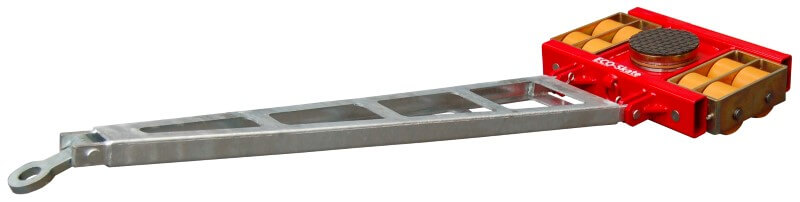

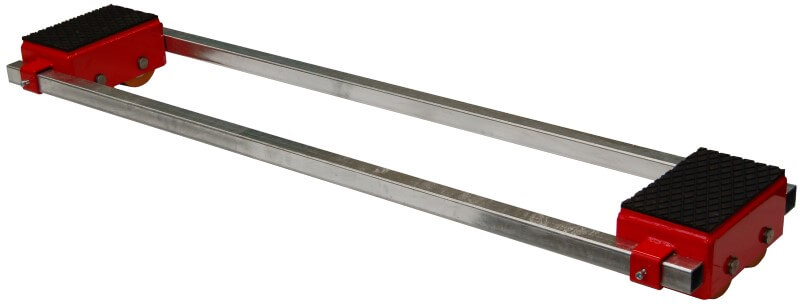

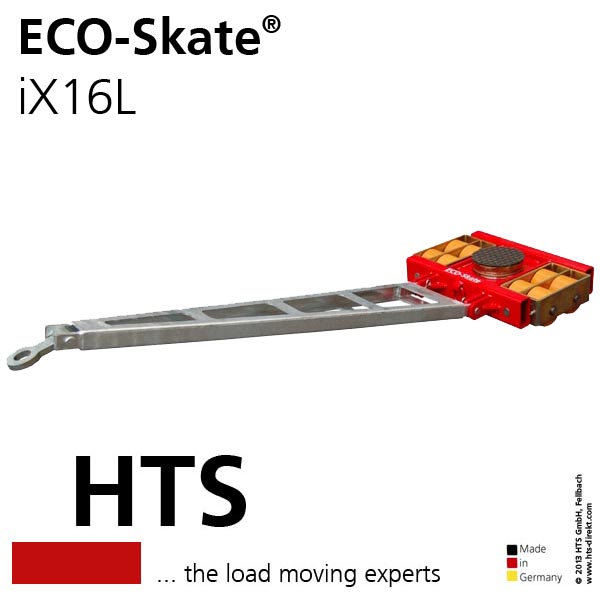

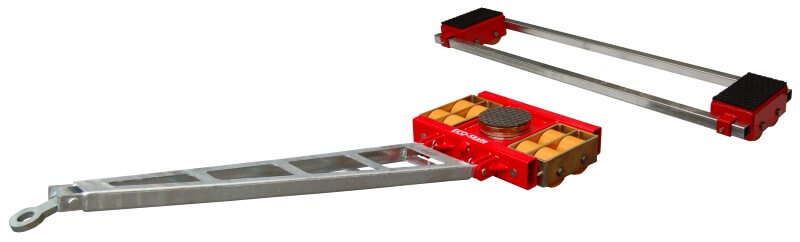

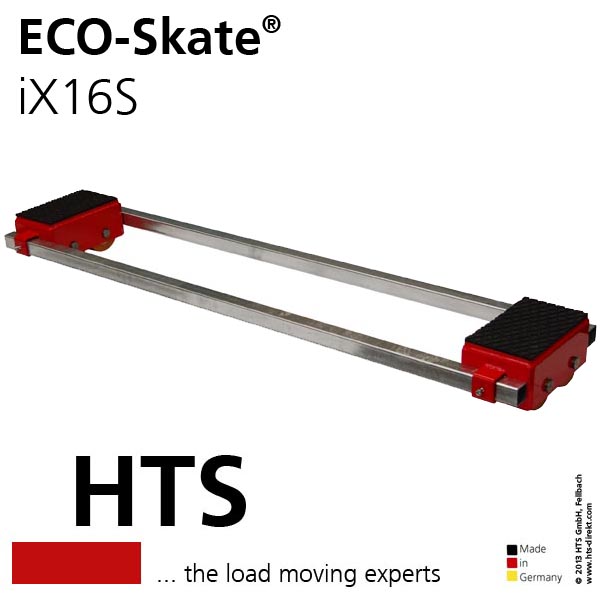

Click an image to enlarge →Machine Moving Skate iX16LMachine Moving Skate iX16SMachine Moving Skate iX16L and iX16S Set
TypeiX16LiX16SiX16L and iX16S Set
Part number10.160.02.1010.160.02.20
Capacity (lbs)35,2002 x 17,60070,400 lbs.
Wheel size (inch)5.5" X 3.3"5.5" X 3.3"
Number of wheels82 x 4
Load area (inch)8.7"12.6" X 7.5"
Dimension L x W x H (inch)22.4" X 28.5" X 7.1"18.3" X 8.5" X 7.1"
Handle length (inch)59"-
Adjustability (inch)-8.6" to 70.8"
Weight (lbs.)337222

24 tons as single

48 tons carrying capacity as a set

Scroll Down

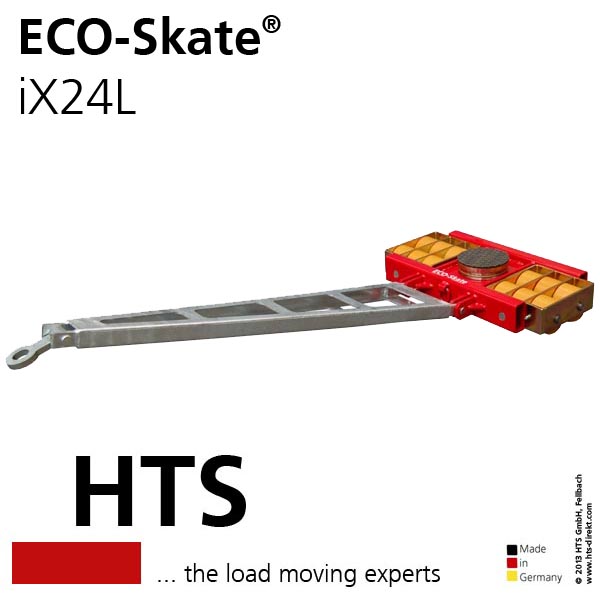

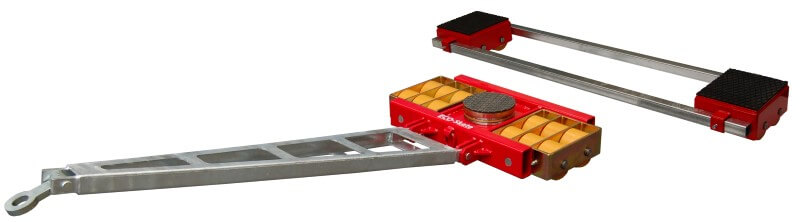

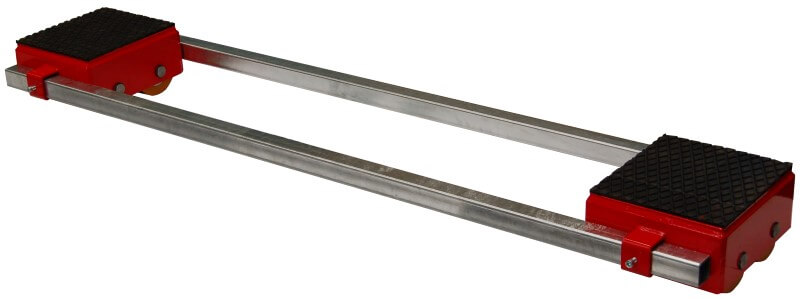

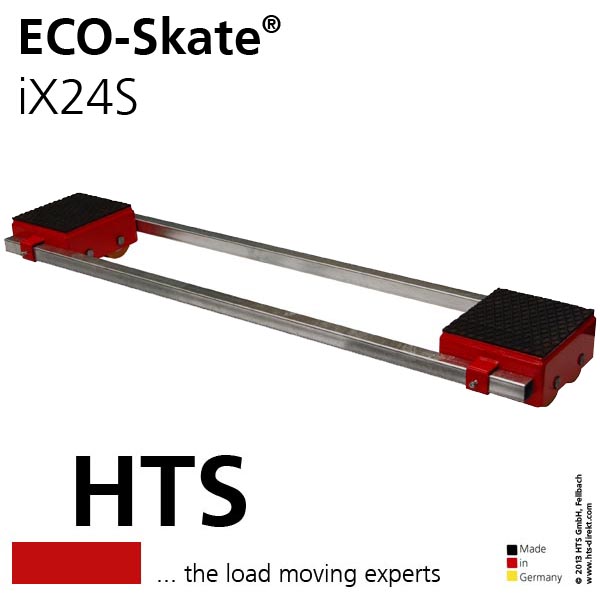

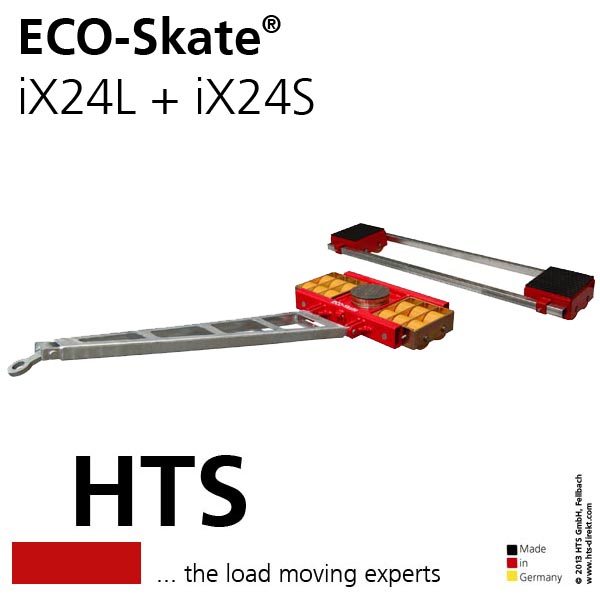

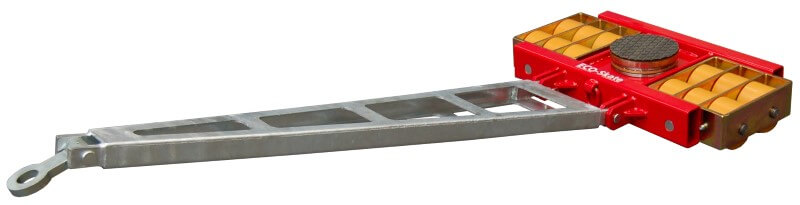

Click an image to enlarge →Machine Moving Skate iX24LMachine Moving Skate iX24SMachine Moving Skate iX24L and iX24S Set
TypeiX24LiX24SiX24L and iX24S Set
Part number10.240.02.1010.240.02.20
Capacity (lbs.)52,8002 x 26,400 105,600 lbs.
Wheel size (mm)5.5" X 3.3"5.5" X 3.3"
Number of wheels122 x 6
Load area (inch)8.7"12.5" X 11.2"
Dimension L x W x H (inch)22.3" X 36.6" X 7.1"18.7" X 12.3" X 7.1"
Handle length (inch)59"-
Adjustability (inch)-12.6" to 63"
Weight (lbs.)394282

32 tons as single

64 tons carrying capacity as a set

Scroll Down

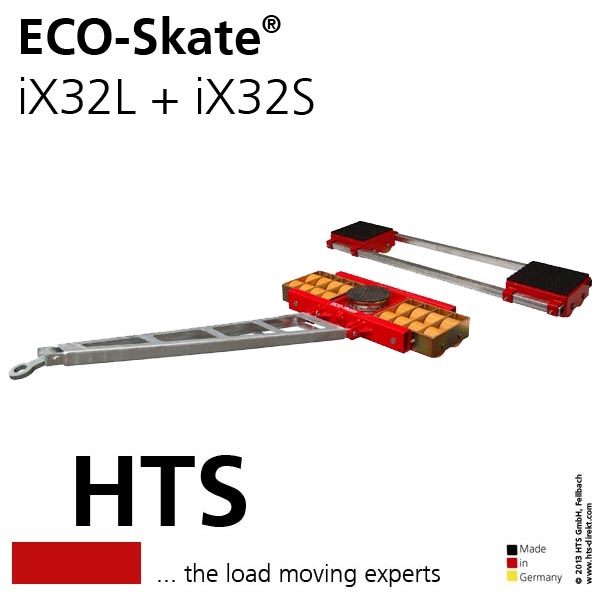

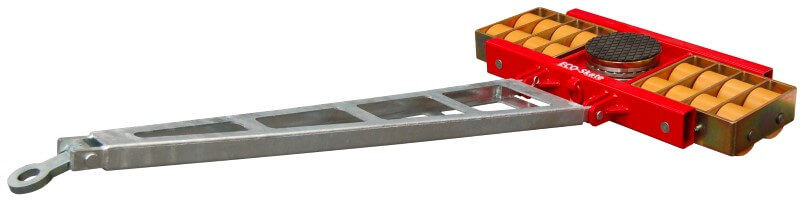

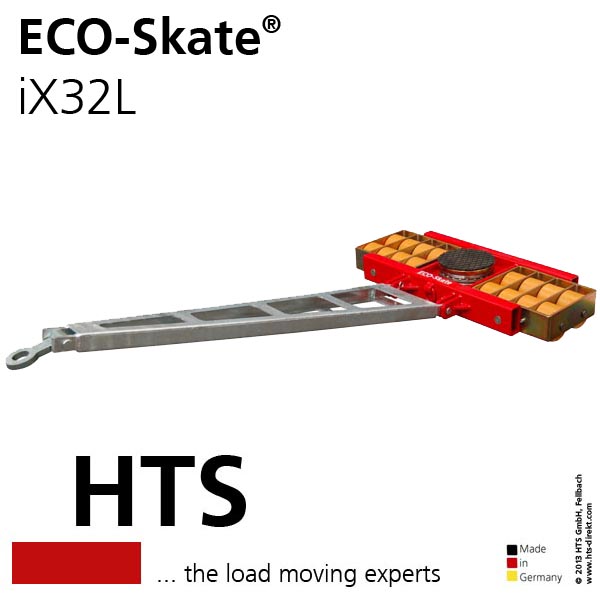

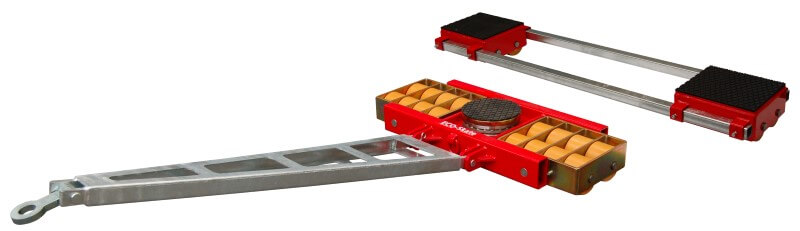

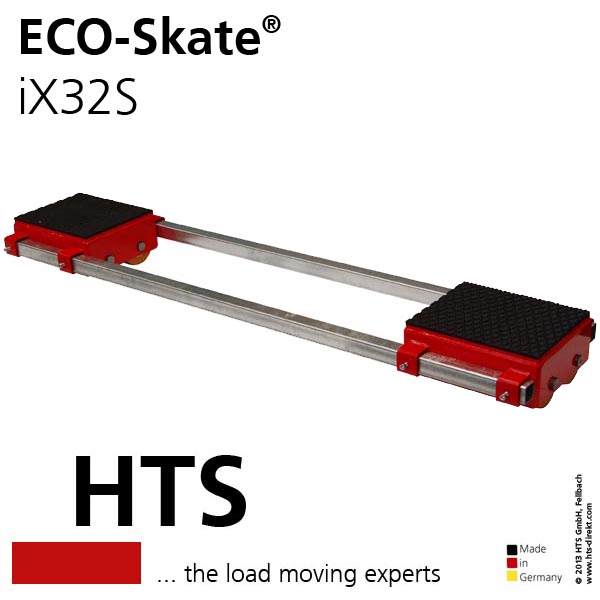

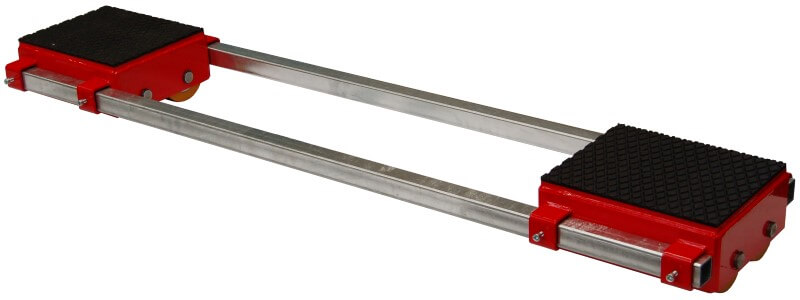

Click an image to enlarge →Machine Moving Skate iX32LMachine Moving Skate iX32SMachine Moving Skate iX32L and iX32S Set
TypeiX32LiX32SiX32L and iX32S Set
Part number10.320.02.1010.320.02.20
Capacity (lbs.)70,4002 x 35,200140,800 lbs.
Wheel size (inch)5.5" X 3.3"5.5" X 3.3"
Number of wheels162 x 8
Load area (inch)9.8"12.5" X 15"
Dimension L x B x H (mm)568 x 1,142 x 180464 x 414 x 180
Handle length (inch)59"-
Adjustability (inch)-16.5" to 63"
Weight (lbs.)453365

40 tons as single

80 tons carrying capacity as a set

Scroll Down

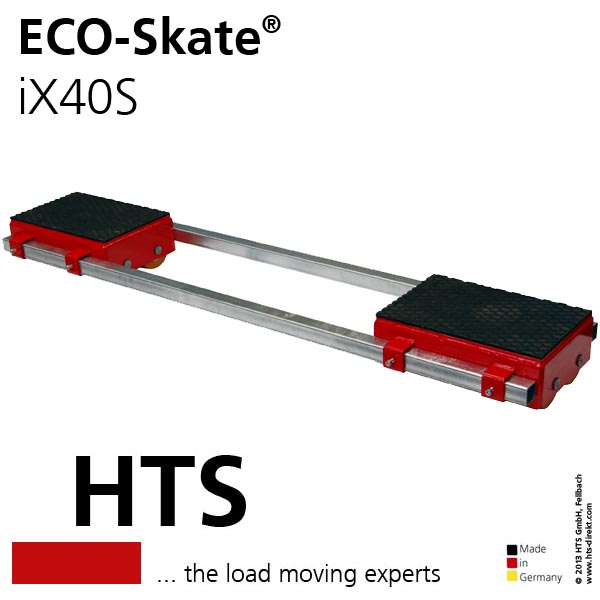

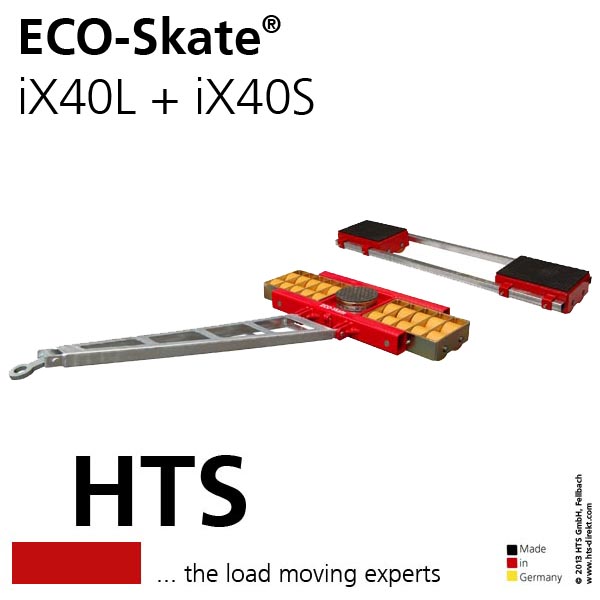

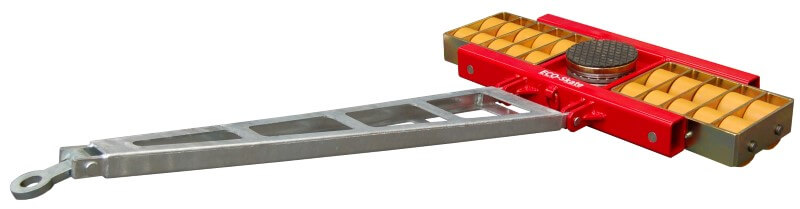

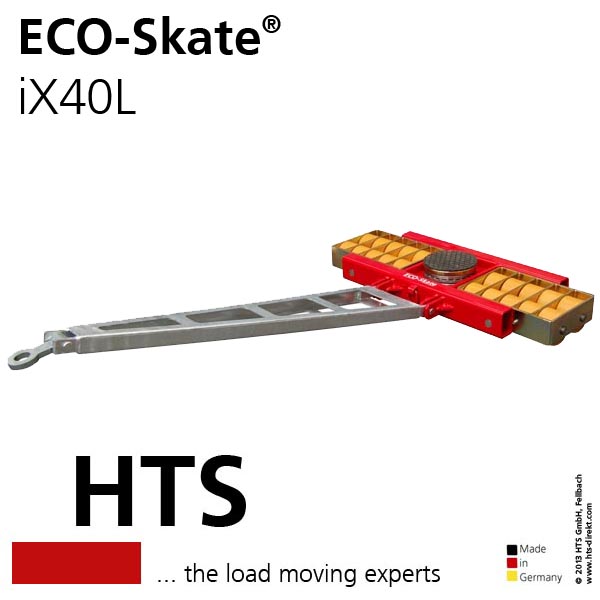

Click an image to enlarge →Machine Moving Skate iX40LMachine Moving Skate iX40SMachine Moving Skates iX40L and iX40S Set
TypeiX40LiX40SiX40L and iX40S Set
Part number10.400.02.1010.400.02.20
Capacity (lbs.)88,8002 x 44,000 80,000
Wheel size (inch)5.5" X 3.3"5.5" X 3.3"
Number of wheels202 x 10
Load area (inch)9.8"12.5" X 18.9"
Dimension L x W x H (inch)23.9" X 52.5" X 7.1"18.7" X 19.9" X 7.1"
Handle length (inch)59"-
Adjustability (inch)-21.6" to 63"
Weight (lbs.)528409

48 tons as single

96 tons carrying capacity as a set

Scroll Down

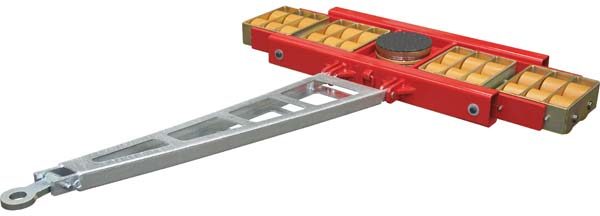

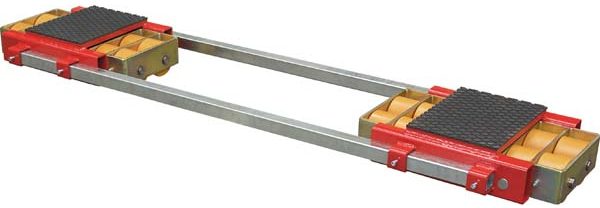

Click an image to enlarge →Machine Moving Skate iX48LMachine Moving Skate iX48SMachine Moving Skate iX48L and iX48S Set
TypeiX48LiX48SiX48L and iX48S Set
Part number10.480.02.1010.480.02.20
Capacity (lbs.)105,6002 x 52,800211,200 lbs.
Wheel size (mm)5.5" X 3.3"5.5" X 3.3"
Number of wheels242 x 12
Load area (inch)9.8"15.7" X 11.8"
Dimension L x W x H (inch)26.4" X 65.7" X 7.1"23.1" X 27.3" X 7.1"
Handle length (inch)59"-
Adjustability (inch)-27.5" to 63"
Weight (lbs.)768594

64 tons as single

128 tons carrying capacity as a set

Scroll Down

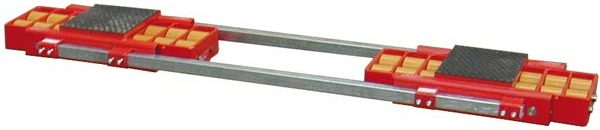

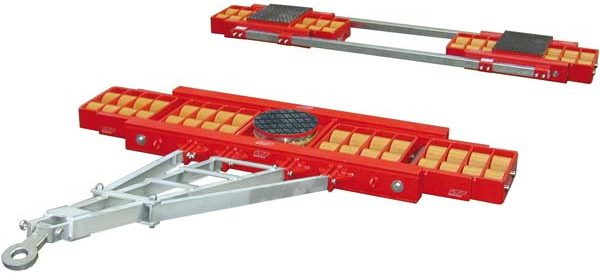

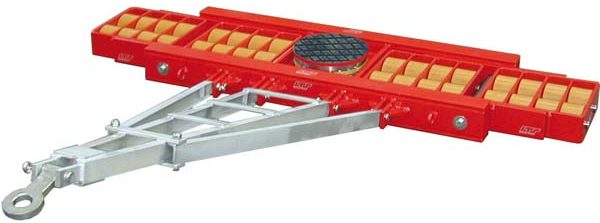

Click an image to enlarge →Machine Moving Skate iX64LMachine Moving Skate iX64SMachine Moving Skate iX64L and iX64S Set
TypeiX64LiX64SiX64L and iX64S Set
Part number10.640.02.1010.640.02.20
Capacity (kg)141,0952 x 70,548282,190 lbs.
Wheel size (mm)5.5" X 3.3"5.5" X 3.3"
Number of wheels322 x 16
Load area (inch)11.8"15.7" x 11.8"
Dimension L x W x H (inch)25.6" x 84.2" x 7.1"23.1" x 35.3" x 7.1"
Handle length (inch)59"-
Adjustability (inch)-35.4" to 63"
Weight (lbs.)1,023723

Features

The axles and bearings in the ECO-Skate XL are supported and enclosed within the frame. This makes it impossible to bend an axle even if the wheel has been overloaded for a short time. For the ECO-Skate XL it is possible to combine any of the different capacities within the range. The total capacities equals the sum of the single capacities of each ECO-Skate. The skates are equipped with HTS polyurethane wheels as standard and can also be purchased separately.

The ECO-Skate XL have the following features

  • Single supported wheels
    All wheels are single supported in the wheel boxes. No axle can bend if overloaded.
  • Steering and alignment bar
    The XL load moving systems are standard equipped with steering and alignment bars. Special lengths are available on request.
  • Strong alignment bars
    The two supplied alignment bars are very strong and zink plated.
  • Combinable
    All ECO-Sakte XL can be combined with each other suitable ECO-Skates such as BALANCE and DUO. The sum of the single skates equals the total load capacity.
  • HTS Polyurethane wheels
    All ECO-Skate load moving system are standard equipped with HTS polyurethane wheels.

For all cases where a standard product is not sufficient, we offer special tailor made solutions to fit the customers needs.

Machine Moving Skates iX40L and iX40S Set

Made in Germany
