ECO-Skate IDEAL

The load moving system
6 tons to 24 tons
polyurethane wheels

3 tons as single

6 tons carrying capacity as a set

Scroll Down

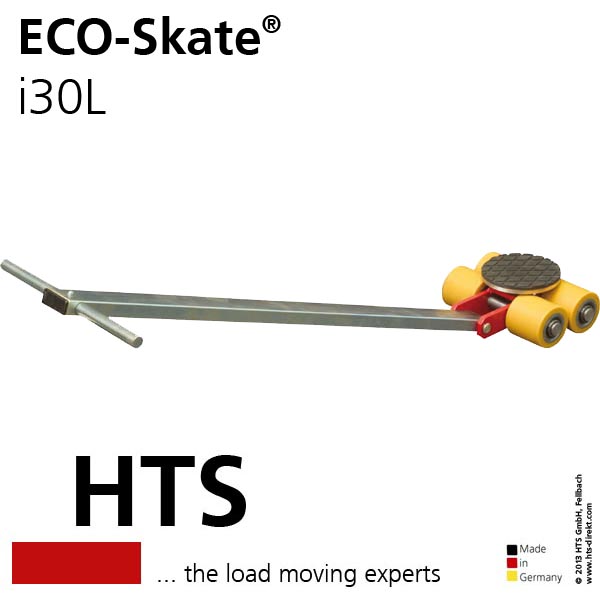

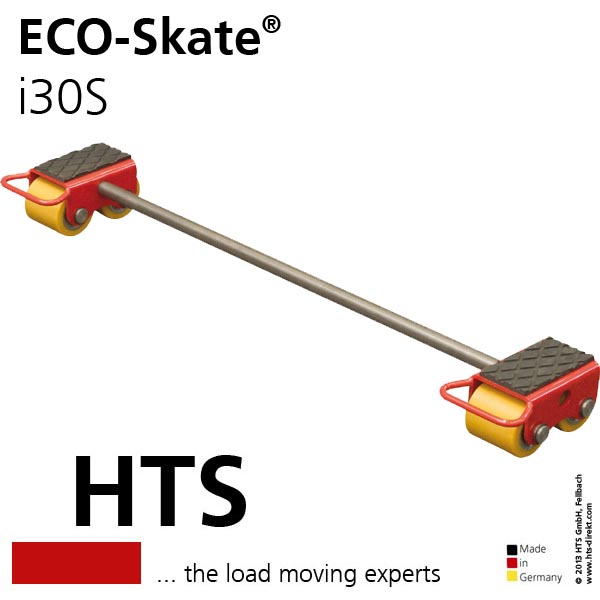

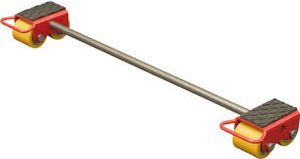

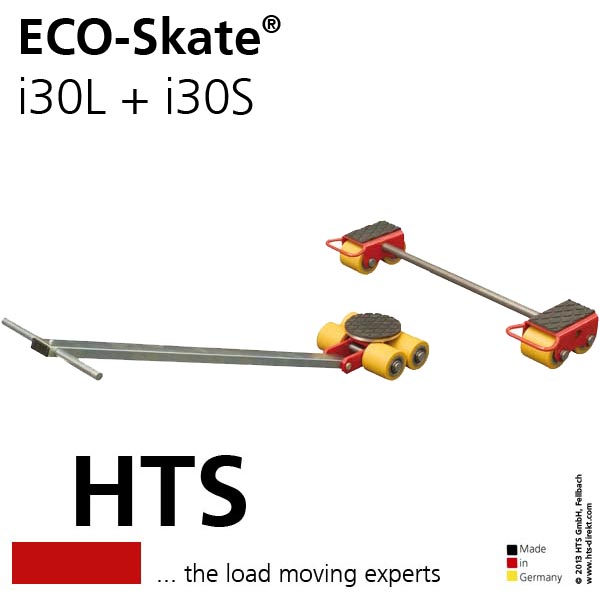

Click an image to enlarge →Machine Moving Skate i30LMachine Moving Skate i30SMachine Moving Skate i30S and i30L Set
Typei30Li30Si30S and i30L Set
Part number10.030.00.1010.030.00.20
Capacity (lbs.)6,6002 x 3,30013,200
Wheels size (inch)3.3" X 3.4"3.3" X 3.4"
Number of wheels42 x 2
Load area (inch)5.9"5.9" X 3"
Dimensions L x W x H (inch)9.3" X 9.4" X 4.3"9.0" X 5.2" X 4.3"
Handle length (inch)39.4"-
Adjustability (inch)-10.4" to 39.3"
Weight (lbs.)3030

6 tons as single

12 tons carrying capacity as a set

Scroll Down

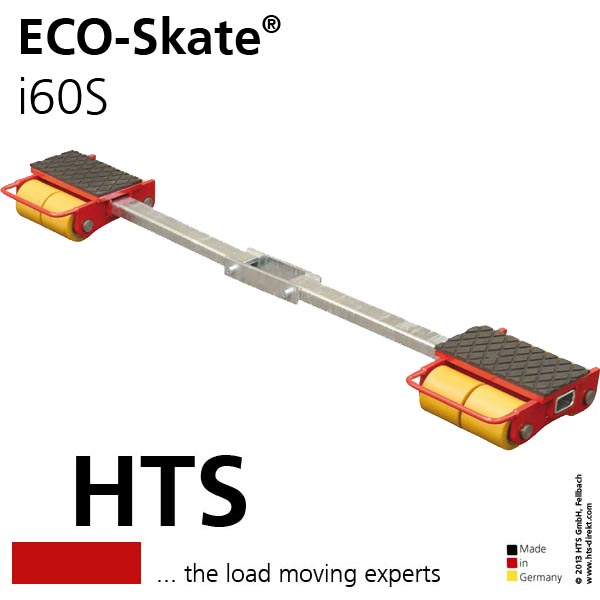

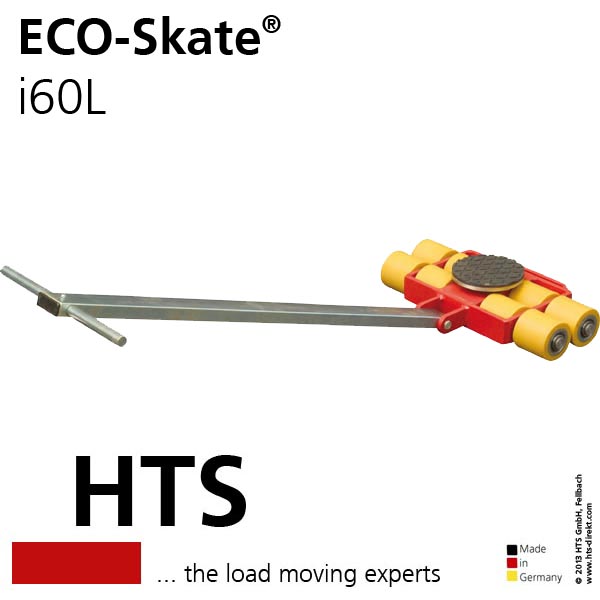

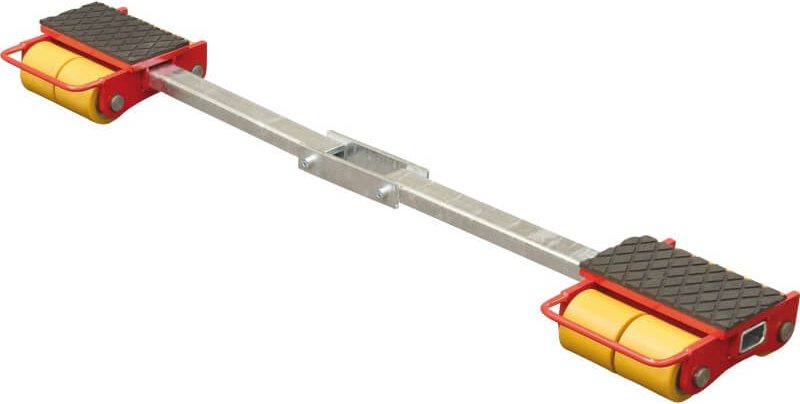

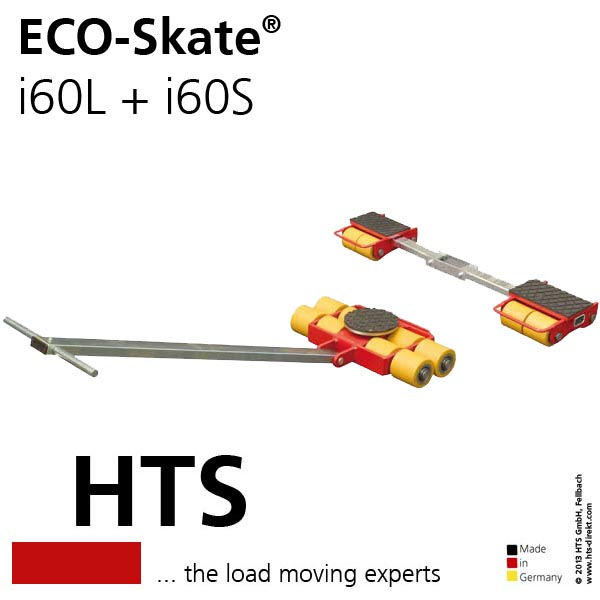

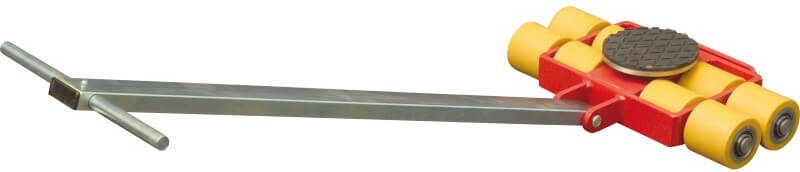

Click an image to enlarge →Machine Moving Skate i60LMachine Moving Skate i60SMachine Moving Skate Machine Moving Skate i60S and i60L Set
Typei60Li60Si60S and i60L Set
Part number10.060.00.1010.060.00.20
Capacity (lbs.)13,2002 x 6,60026,400
Wheels size (inch)3.3" X 3.4"3.3" X 3.4"
Number of wheels82 x 4
Load area (inch)5.9"4.7" X 8.7"
Dimensions L x W x H (inch)13.5" X 19" X 4.3"11.5" X 8.7" X 4.3"
Handle length (inch)39.4"-
Adjustability (inch)-16.5" to 43.3"
Weight (lbs.)6868

9 tons as single

18 tons carrying capacity as a set

Scroll Down

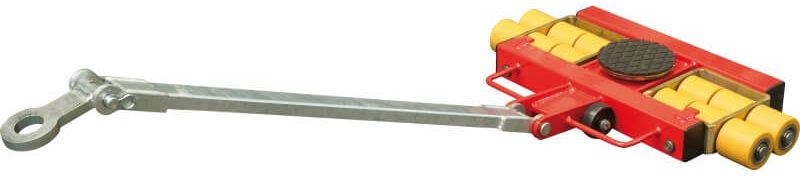

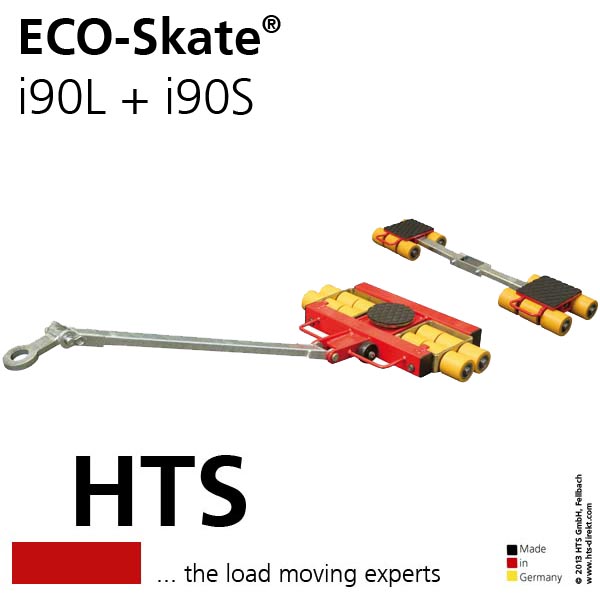

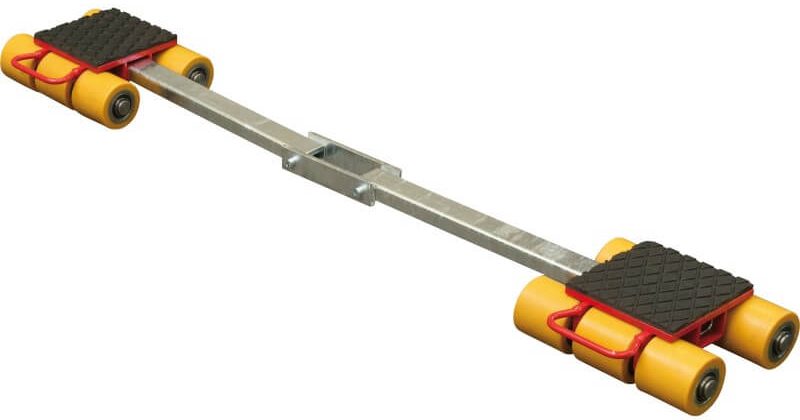

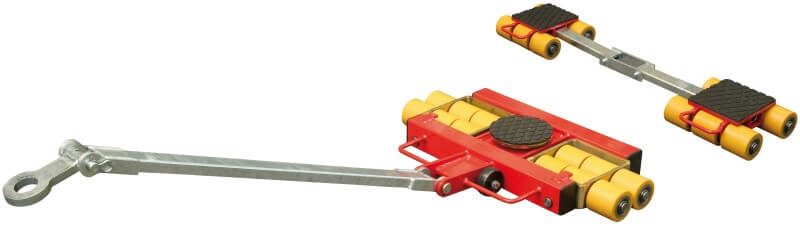

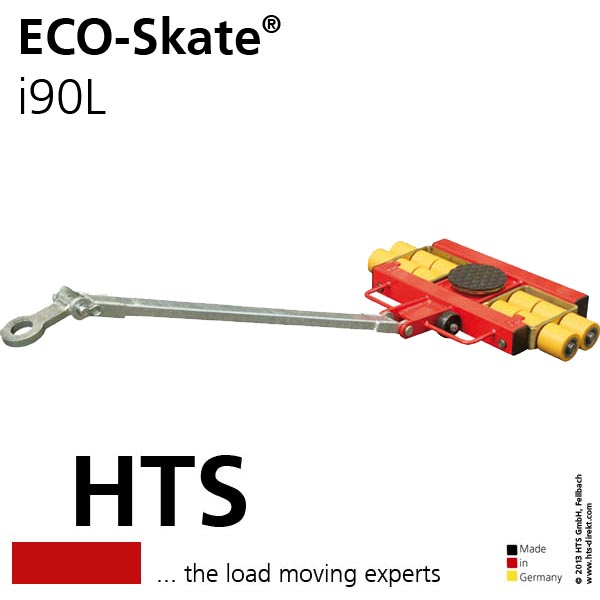

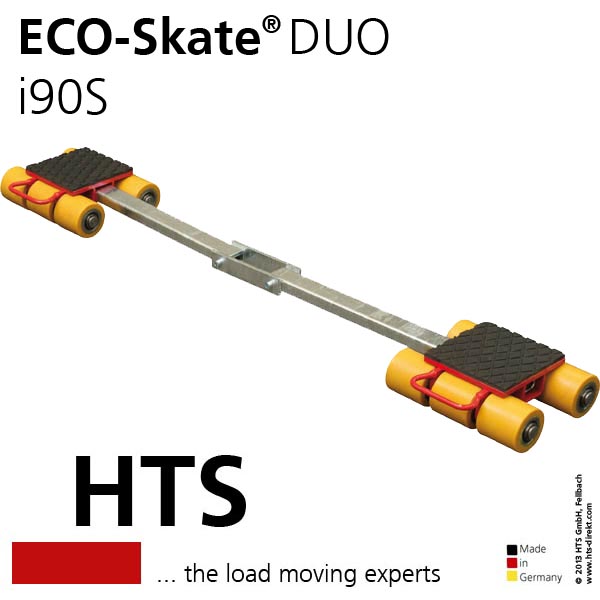

Click an image to enlarge →Machine Moving Skate i90LMachine Moving Skate i90SMachine Moving Skate i90S and i90L Set
Typei90Li90Si90S and i90L Set
Part number10.090.00.1010.090.00.20
Capacity (lbs.)19,8002 x 9,90039,600
Wheels size (inch)3.3" X 3.4"3.3" X 3.4"
Number of wheels122 x 6
Load area (inch)6.70"6.7" X 7.1"
Dimensions L x W x H (inch)20.8" X 30.4" X 4.3"11.6" X 11.6" X 4.3"
Handle length (inch)47.2"-
Adjustability (inch)-18.1" to 43.3"
Weight (lbs.)13892

12 tons as single

24 tons carrying capacity as a set

Scroll Down

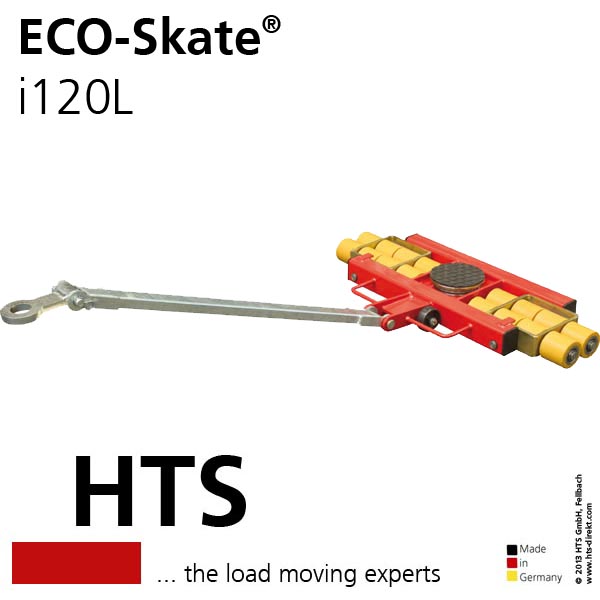

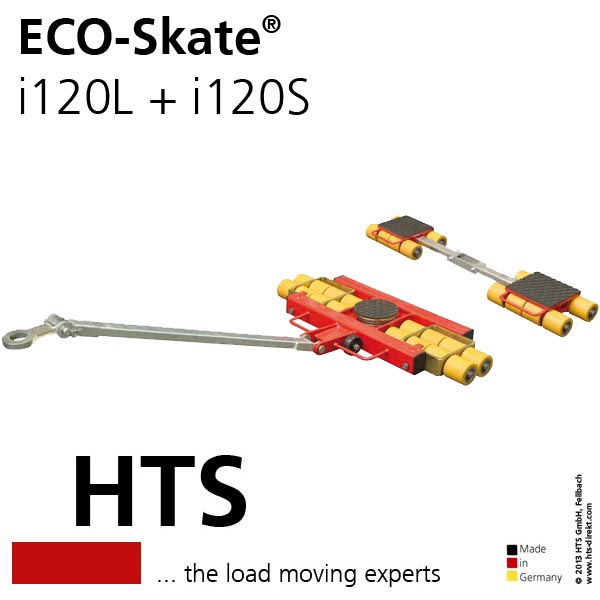

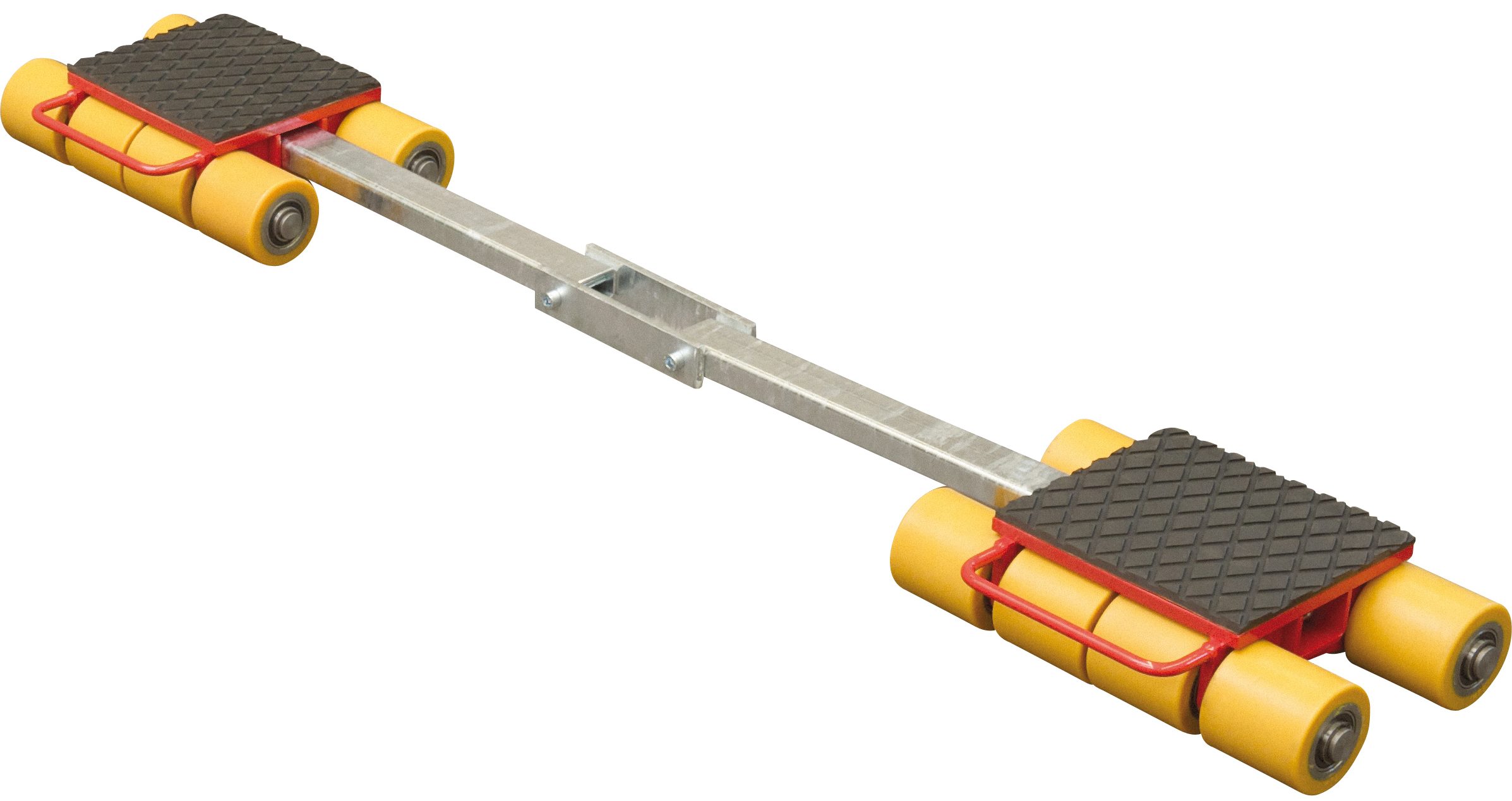

Click an image to enlarge →Machine Moving Skate i120L_300pxMachine Moving Skate i120S 100%ECO-Skate IDEAL
Typei120Li120Si120S and i120L Set
Part number10.120.00.1010.120.00.20
Capacity (lbs.)26,4002 x 13,20052,800
Wheels size (inch)3.3" X 3.4"3.3" X 3.4"
Number of wheels162 x 8
Load area (inch)6.7"7.9" X 8.7"
Dimensions L x W x H (inch)20.8" X 38.6" X 4.3"11.5" X 15" X 4.3"
Handle length (inch)47.2"-
Adjustability (inch)-22" to 43.3"
Weight (lbs.)161117

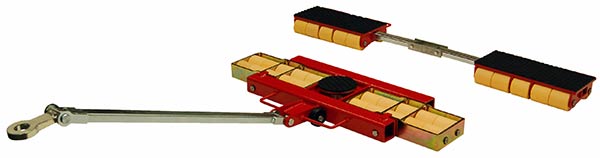

15 tons as single

Scroll Down
Typei150Li150S
Part number10.150.00.1010.150.00.20
Capacity (kg)33070 lbs.2 X 17850 lbs.
Wheels size (mm)3.3” X 3.4”3.3” X 3.4”
Number of wheels202 x 10
Load area (mm)6.7”2 X 7.9” X 19.6”
Dimensions L x B x H (mm)22.3” X 47” X 4.3”11.5” X 19.6” X 4.3”
Handle length (mm)46”-
Adjustability (mm)-27.3” to 55.2”
Weight (kg)218 lbs.148 lbs.

Features

With ECO-Skate IDEAL load moving systems you are able to move loads up to 30 tons. All Skate systems are standard equipped with a steering bar and alignment bar as well as HTS Polyurethane wheels, if desired we can equip the skates with steel wheels as well. All ECO-Skate IDEAL skates can be combined with each other and with other skates with the same height. The sum of the capacity of a single skate equals the total capacity of a system. You can get single front or rear units as well.

Load moving systems of the ECO-Skate IDEAL have the following features

  • Steering and alignment bar
    The IDEAL load moving systems are standard equipped with steering and alignment bars. Special lengths are available on request.
  • Folding alignment bar
    The i60S to i120S are supplied with a folding alignment bar.
  • Combinable
    All ECO-Skate IDEAL load moving systems can be combined with all other suitable skate systems such as IDEAL (NY),  ROTO and DUO. The sum of each skate equals the total carrying capacity.
  • HTS Polyurethane wheels
    All skate are standard equipped with HTS Polyurethane wheels. They are available as spare parts for other manufactured skates as well. On request and if the floor allows it we can supply all skates with steel wheels.

For all cases where a standard product is not sufficient, we offer special tailor made solutions to fit the customers needs.

ECO-Skate IDEAL

Made in Germany
