ECO-Skate XL (NY)

The extra large load moving system with HTS nylon wheels
40 tons to 100 tons

20 tons as single

40 tons carrying capacity as a set with nylon wheels

Scroll Down

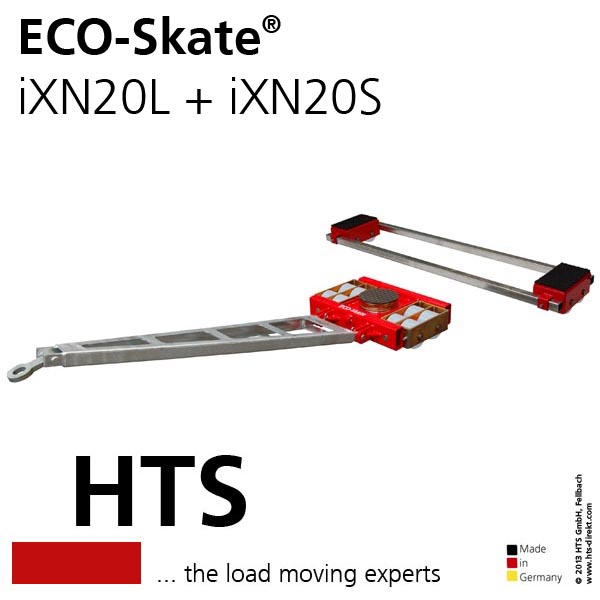

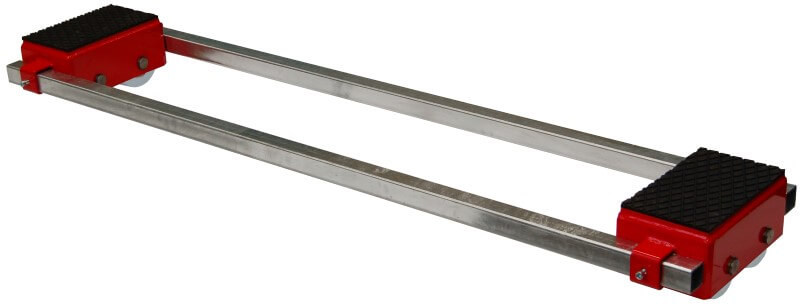

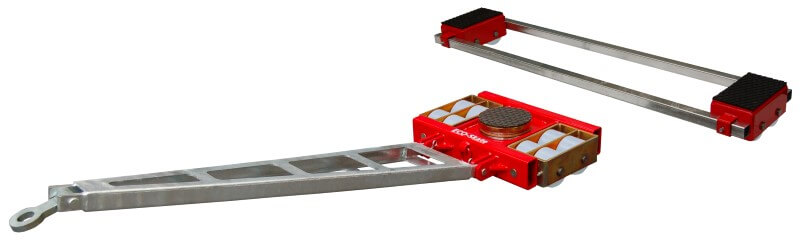

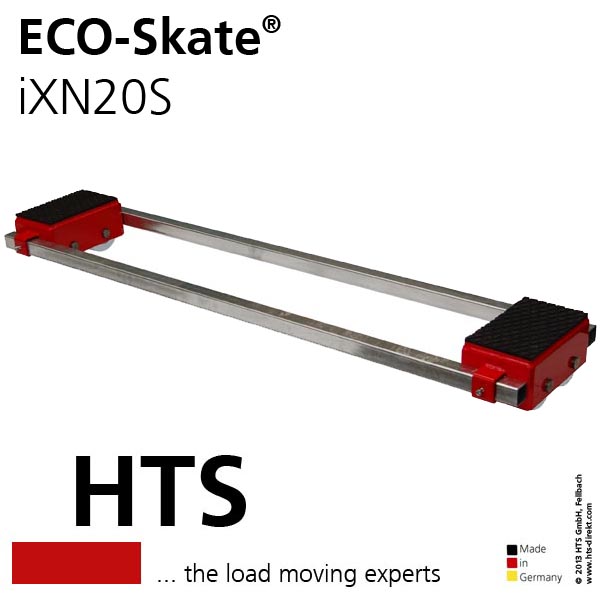

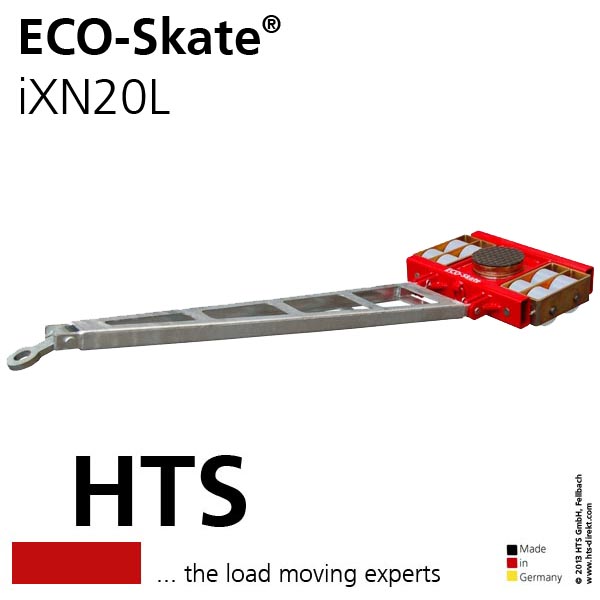

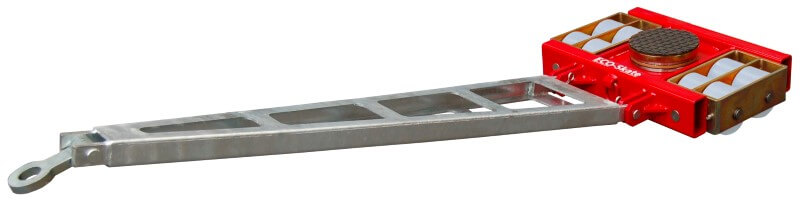

Click an image to enlarge →Machine Moving Skate iXN20LMachine Moving Skate iXN20SMachine Moving Skate iXN20L and iXN20S Set
TypeiXN20LiXN20SiXN20L and iXN20S Set
Part number10.200.03.1010.200.03.20
Capacity (lbs.)44,0002 x 22,00088,100 lbs.
Wheel size (inch)5.5" X 3.3" Nylon5.5" X 3.3" Nylon
Number of wheels82 x 4
Load area (inch)8.7"12.6" X 7.5"
Dimension L x W x H (inch)22.4" X 28.5" X 7.1"18.3" X 8.5" X 7.1"
Handle length (inch)59"-
Adjustability (mm)-8.6" to 70.8"
Weight (lbs.)280176

30 tons as single

60 tons carrying capacity as a set with nylon wheels

Scroll Down

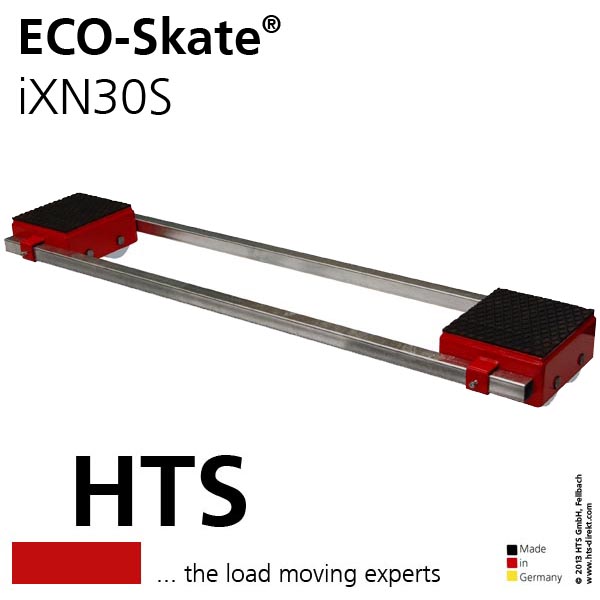

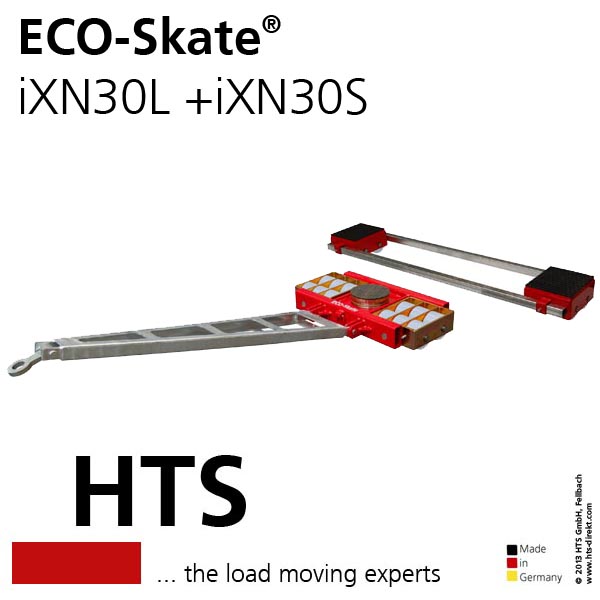

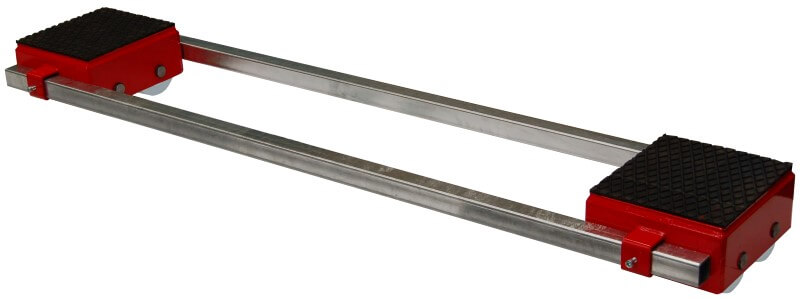

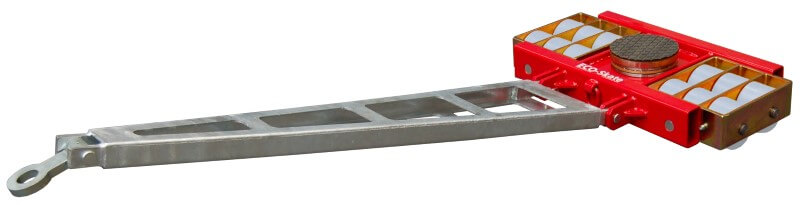

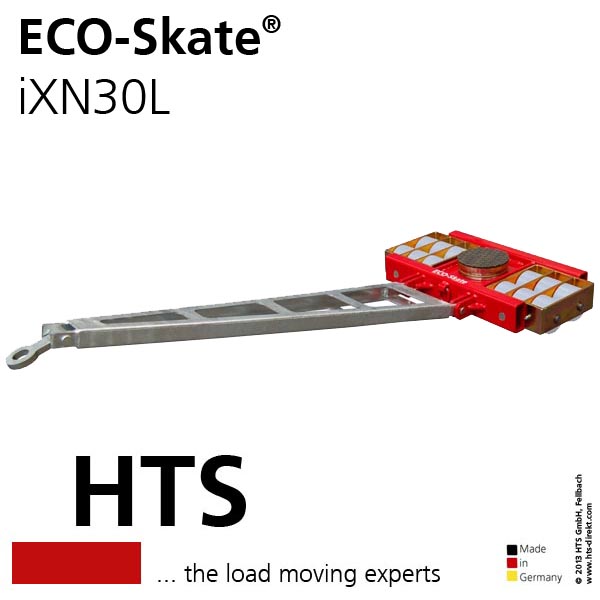

Click an image to enlarge →Machine Moving Skate iXN30LMachine Moving Skate iXN30SMachine Moving Skate iXN30L and iXN30S Set
TypeiXN30LiXN30SiXN30L and iXN30S Set
Part number10.300.03.1010.300.03.20
Capacity (lbs.)66,1002 x 33,000132,200 lbs.
Wheel size (inch)5.5" X 3.3" Nylon5.5" X 3.3" Nylon
Number of wheels122 x 6
Load area (inch)8.7"12.5" X 11.2"
Dimension L x W x H (inch)22.3" X 36.6" X 7.1"18.7" X 12.3" X 7.1"
Handle length (inch)59"-
Adjustability (inch)-12.6" to 63"
Weight (lbs.)328238

40 tons as single

80 tons carrying capacity as a set with nylon wheels

Scroll Down

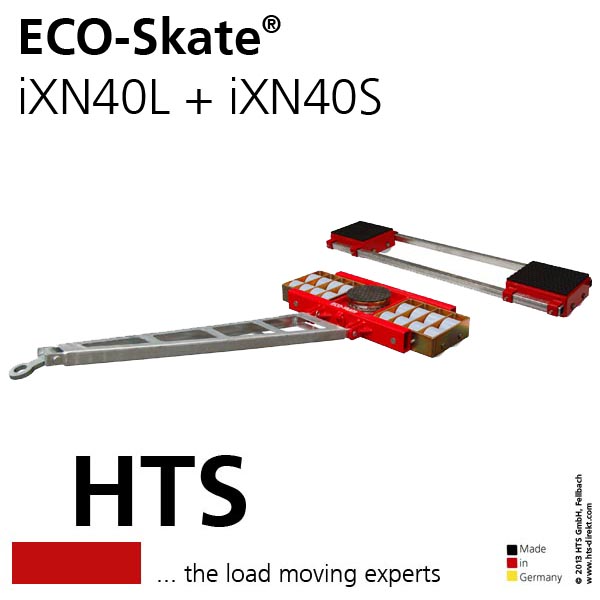

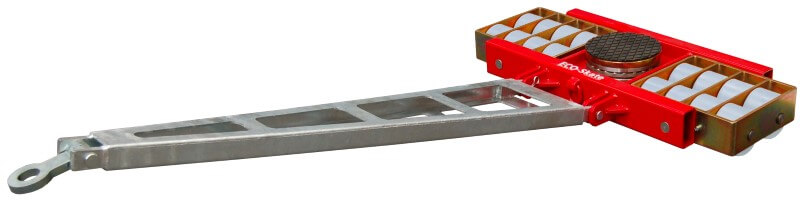

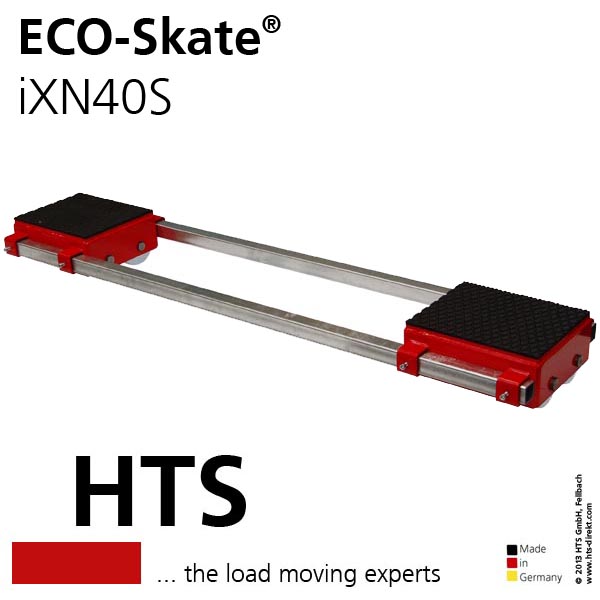

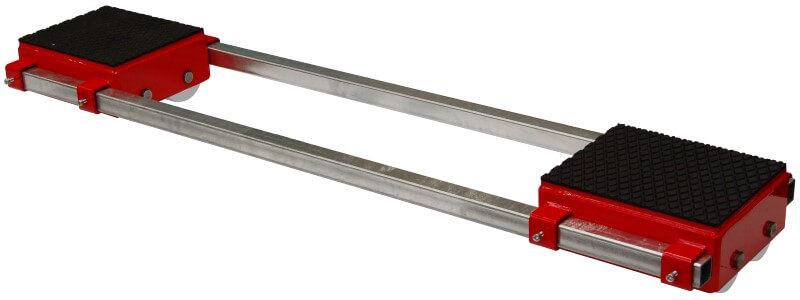

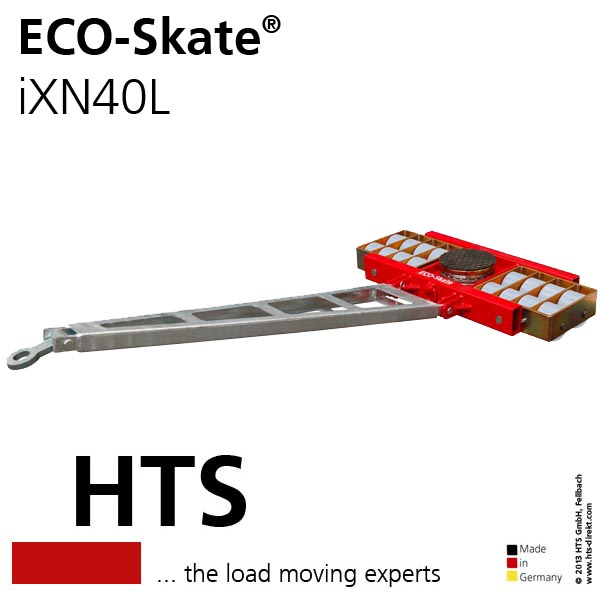

Click an image to enlarge →Machine Moving Skate iXN40LMachine Moving Skate iXN40SMachine Moving Skate iXN40L and iXN40S Set
TypeiXN40LiXN40SiXN40L and iXN40S Set
Part number10.400.03.1010.400.03.20
Capacity (lbs.)88,1002 x 44,000176,300 lbs.
Wheel size (mm)5.5" X 3.3" Nylon5.5" X 3.3" Nylon
Number of wheels162 x 8
Load area (inch)8.7"12.5" X 15"
Dimension L x W x H (inch)22.3" X 44.8" X 7.1"18.7" X 16.1" X 7.1"
Handle length (inch)59"-
Adjustability (inch)-16.5" to 63"
Weight (lbs.)395300

50 tons as single

100 tons carrying capacity as a set with nylon wheels

Scroll Down

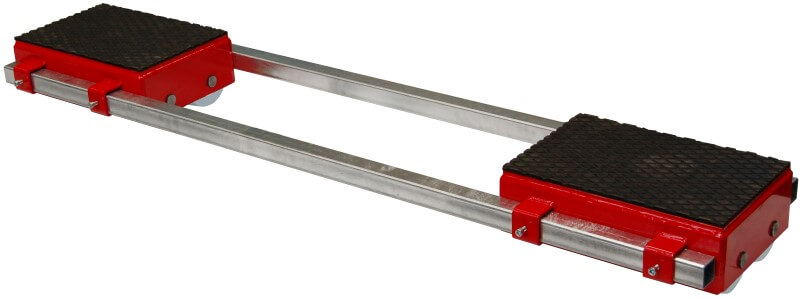

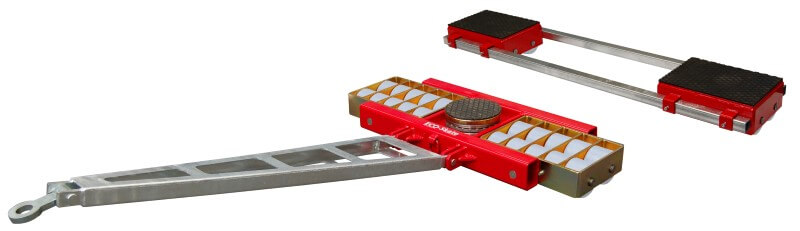

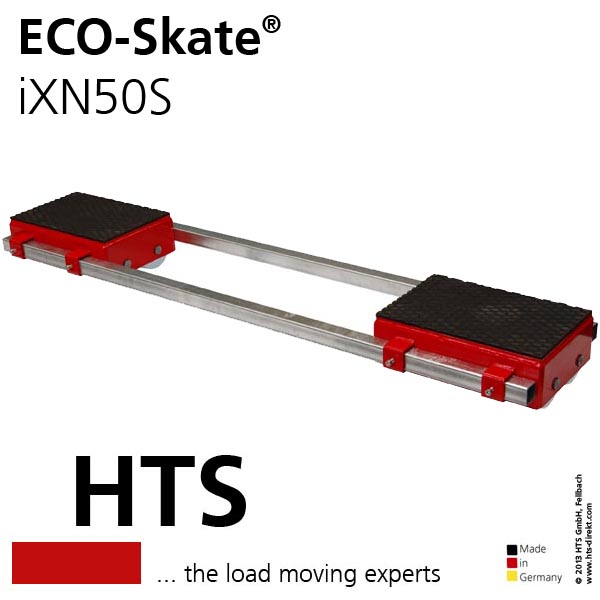

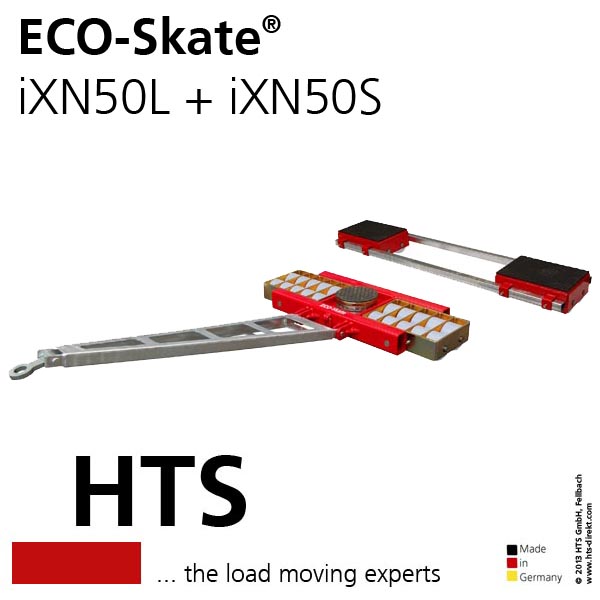

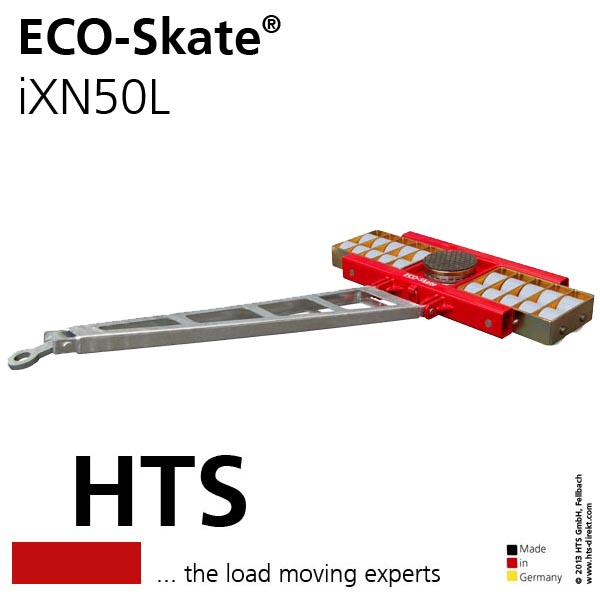

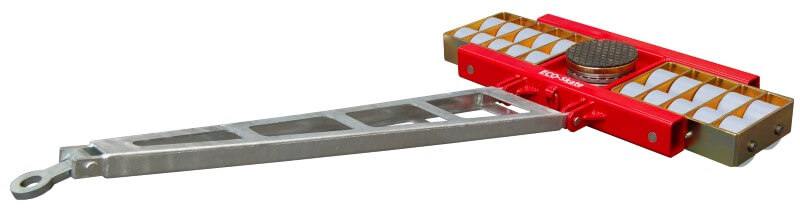

Click an image to enlarge →Machine Moving Skate iXN50LMachine Moving Skate iXN50SMachine Moving Skate iXN50L and iXN50S Set
TypeiXN50LiXN50SiXN50L and iXN50S Set
Part number10.500.03.1010.500.03.20
Capacity (lbs.)110,2002 x 55,100220,400 lbs.
Wheel size (mm)5.5" X 3.3" Nylon5.5" X 3.3" Nylon
Number of wheels202 x 10
Load area (inch)8.7"12.5" X 18.9"
Dimension L x W x H (inch)23.9" X 52.5" X 7.1"18.7" X 19.9" X 7.1"
Handle length (inch)59"-
Adjustability (inch)-21.6" to 63"
Weight (lbs.)472366

Features

The axles and bearings in the ECO-Skate XL (NY) are supported and enclosed within the frame. This makes it impossible to bend an axle even if the wheel has been overloaded for a short time. For the ECO-Skate XL (NY) it is possible to combine any of the different capacities within the range. The total capacities equals the sum of the single capacities of each ECO-Skate. The skates are equipped with HTS nylon wheels as standard and can also be purchased separately.

The ECO-Skate XL (NY) have the following features

  • Single supported wheels
    All wheels are single supported in the wheel boxes. No axle can bend if overloaded.
  • Steering and alignment bar
    The XL (NY) load moving systems are standard equipped with steering and alignment bars. Special lengths are available on request.
  • Strong alignment bars
    The two supplied alignment bars are very strong and zinc plated.
  • Combinable
    All ECO-Skate XL (NY) can be combined with each other suitable ECO-Skates such as BALANCE, XL and DUO XL. The sum of the single skates equals the total load capacity.
  • HTS Nylon wheels
    All ECO-Skate IDEAL (NY) load moving systems are standard equipped with HTS nylon wheels which have a very low rolling resistance.

For all cases where a standard product is not sufficient, we offer special tailor made solutions to fit the customers needs.

Machine Moving Skate iXN40L and iXN40S Set
