ECO-Skate BIG

The strongest load moving skate
88 to 220 tons

44 tons as a single

Scroll Down

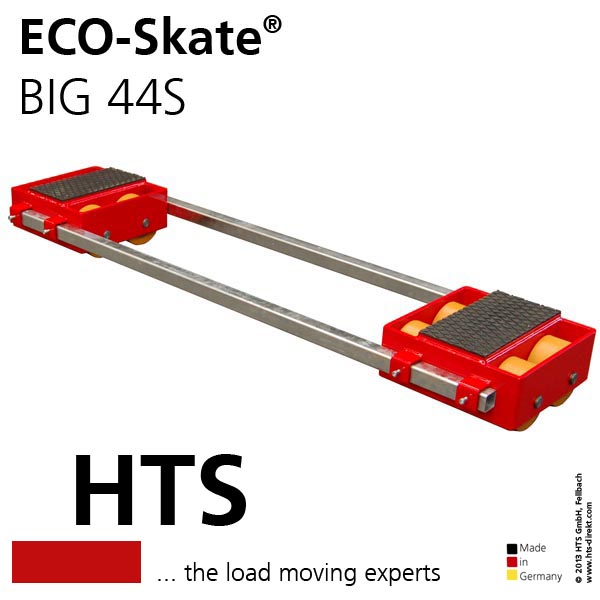

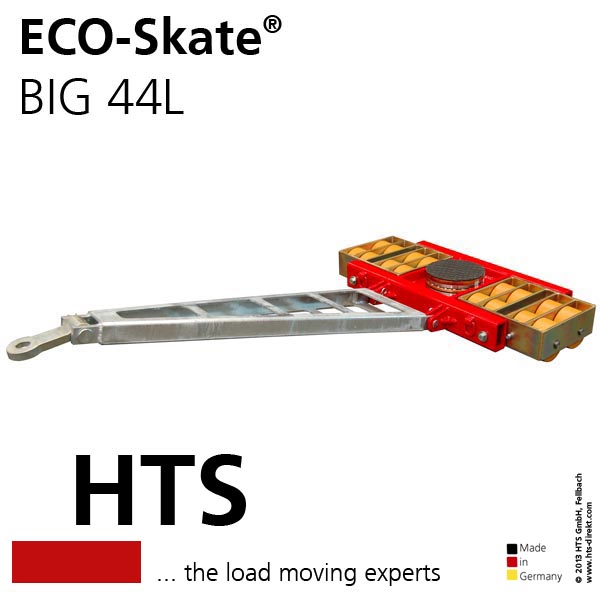

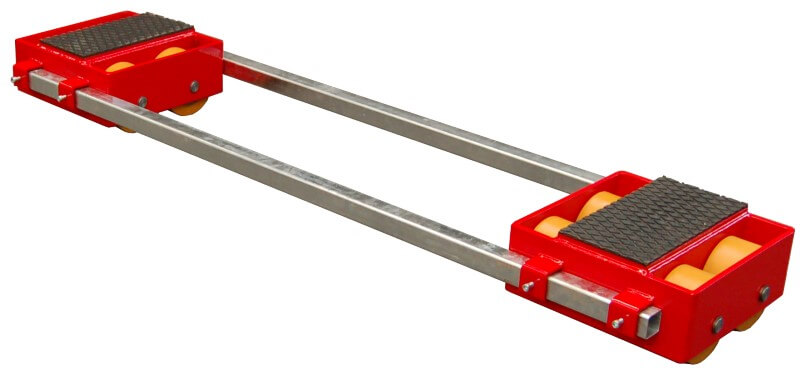

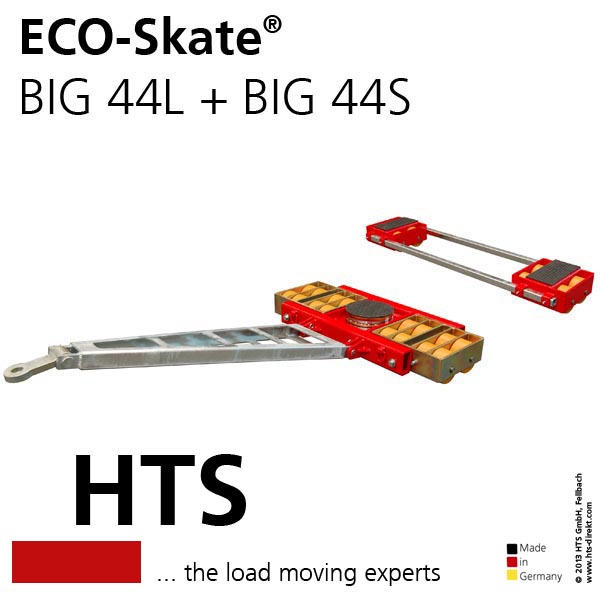

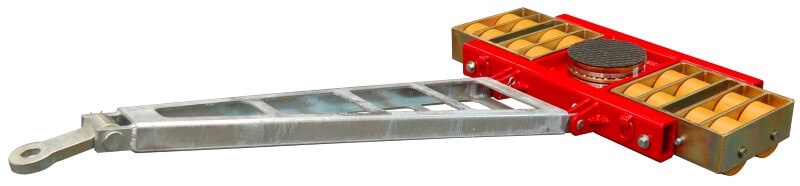

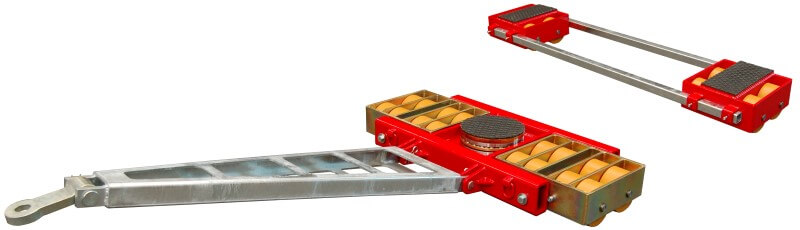

Click an image to enlarge →Machine Moving Skate BIG44LMachine Moving Skate BIG44SMachine Moving Skate BIG44L and BIG44S Set
TypeBIG44LBIG44SBIG44L and BIG44S Set
Part number09.044.04.1009.044.04.20
Capacity (lbs.)97,0002 x 48,500194,000 lbs.
Wheel size (mm)7" X 3.5"7" X 3.5"
Number of wheels162 x 8
Load area (inch)11.8"15.8" X 8"
Dimension L x W x H (inch)29" X 15.4" X 8.7"22.1" X 17.2" X 8.7"
Handle length (inch)59"-
Adjustability (inch)-17.7" to 68.3"
Weight (lbs.)946578

66 tons as Single

132 tons carrying capacity as a set

Scroll Down

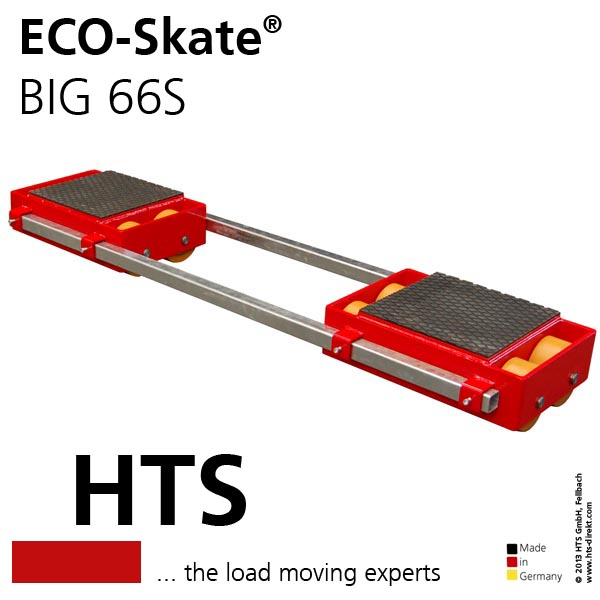

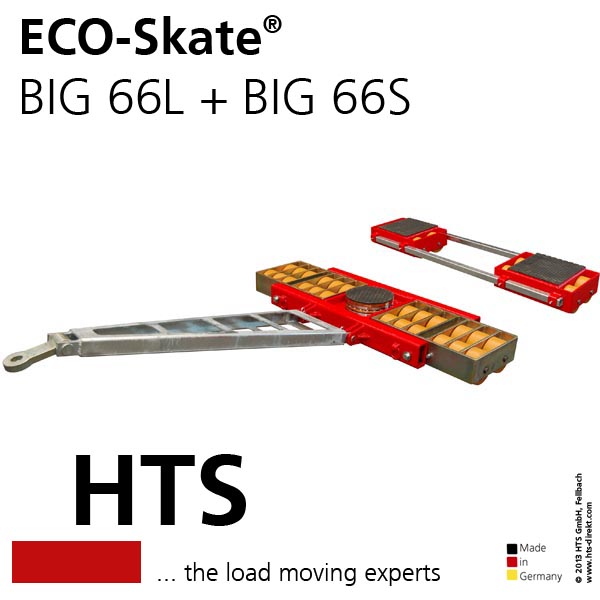

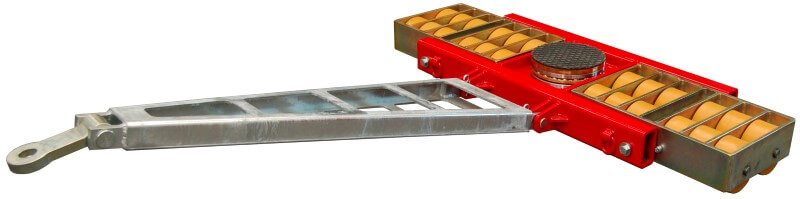

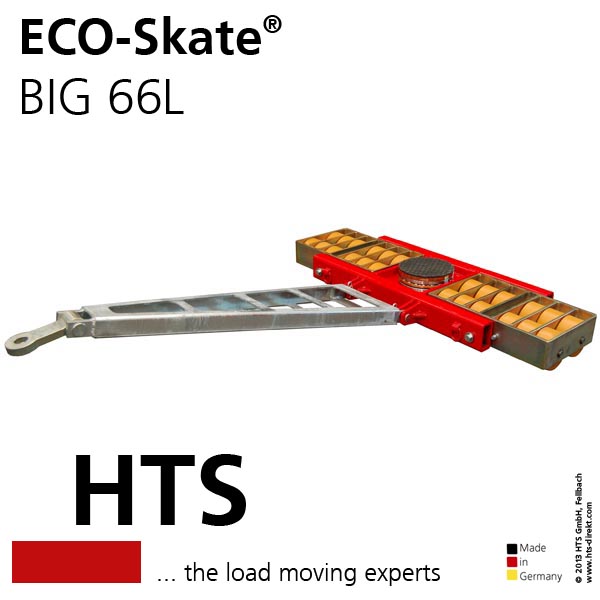

Click an image to enlarge →Machine Moving Skate BIG66LMachine Moving Skate BIG66SMachine Moving Skate BIG66L and BIG66S Set
TypeBIG66LBIG66SBIG66L and BIG66S Set
Part number09.066.04.1009.066.04.20
Capacity (lbs.)145,5002 x 72,750291,000 lbs.
Wheel size (inch)7" X 3.5"7" X 3.5"
Number of wheels242 x 12
Load area (inch)11.8"15.7" X 16"
Dimension L x W x H (inch)29" X 71" X 8.7"22.1" X 25.3" X 8.7"
Handle length (inch)59"-
Adjustability (inch)-25.6" to 60.2"
Weight (lbs)1296842

88 tons as Single

176 tons carrying capacity as a set

Scroll Down

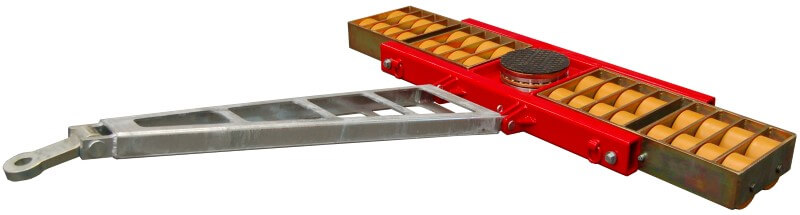

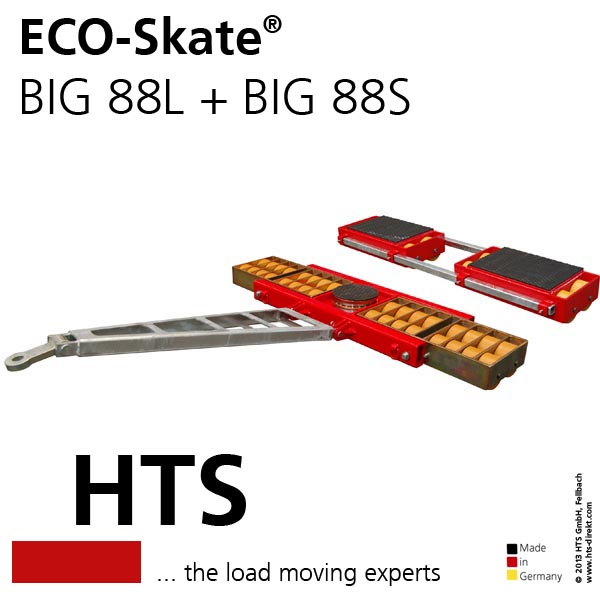

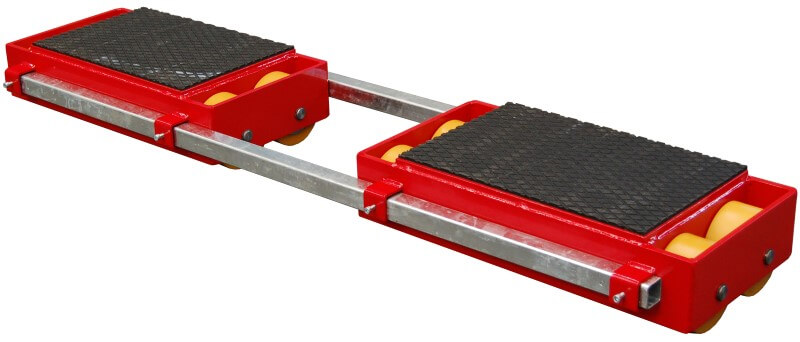

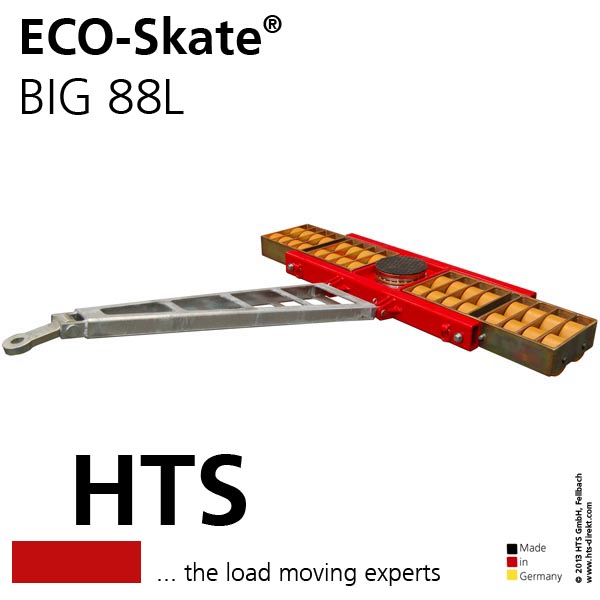

Click an image to enlarge →Machine Moving Skate BIG88LMachine Moving Skate BIG88SMachine Moving Skate BIG88L and BIG88S Set
TypeBIG88LBIG88SBIG88L and BIG88S Set
Part number09.088.04.1009.088.04.20
Capacity (lbs.)194,0002 x 97,000 388,000 lbs.
Wheel size (inch)7" X 3.5"7" X 3.5"
Number of wheels322 x 16
Load area (inch)11.8"23.2" X 24"
Dimension L x W x H (inch)29" X 87.2" X 8.7"22.1" X 33.4" X 8.7"
Handle length (inch)59"-
Adjustability (inch)-35.4" to 52"
Weight (lbs.)14401145

132 tons as Single

220 tons carrying capacity as a set

Scroll Down
Machine Moving Skate BIG132SMachine Moving Skate BIG88L and BIG132S Set
TypeBIG132SBIG88L and BIG132S Set
Part Number09.132.04.20
Capacity (lbs.)2 x 145,500485,000 lbs.
Wheel size (mm)7" X 3.5"
Number of wheels2 x 24
Load area (inch)23.3" X 24.3"
Dimension L x W x H (inch)29.1" X 33.4" X 8.7"
Adjustability (inch)35.4" to 52"
Weight (lbs.)1145

Features

The axles and bearings in the ECO-Skate BIG-Series are supported and enclosed within the frame. This makes it impossible to bend an axle even if the wheel has been overloaded for a short time. For the ECO-Skate BIG-Series it is possible to combine any of the different capacities within the range. The total capacities equals the sum of the single capacities of each ECO-Skate. The skates are equipped with HTS polyurethane wheels as standard and can also be purchased separately.

The ECO-Skate BIG-Series have the following features

  • Single supported wheels
    All wheels are single supported in the wheel boxes. No axle can bend if overloaded.
  • Steering and alignment bar
    The BIG-Series load moving systems are standard equipped with steering and alignment bars. Special lengths are available on request.
  • Strong alignment bars
    The two supplied alignment bars are very strong and zinc plated.
  • Combinable
    All ECO-Sakte BIG-Series can be combined with each other. The sum of the single skates equals the total load capacity.
  • HTS Polyurethane wheels
    All ECO-Skate load moving system are standard equipped with HTS polyurethane wheels.

For all cases where a standard product is not sufficient, we offer special tailor made solutions to fit the customers needs.

Machine Moving Skate BIG66L and BIG66S Set

Made in Germany
