ECO-Skate DUO

Load moving systems for 4 load points
12 tons - 96 tons

12 tons

24 tons as set

Scroll Down

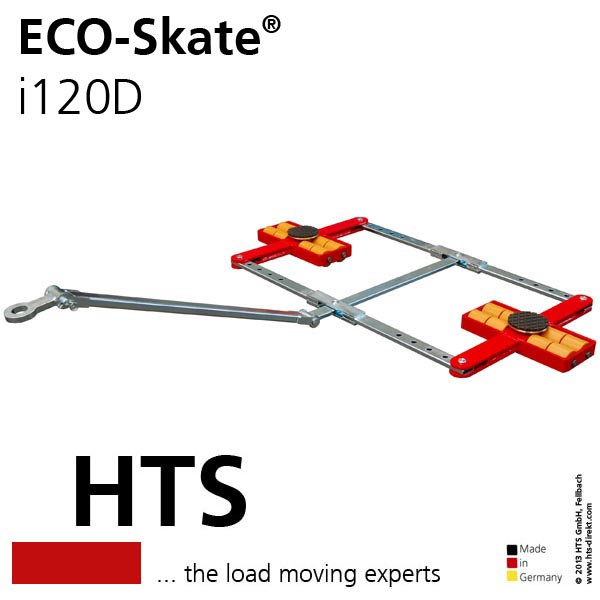

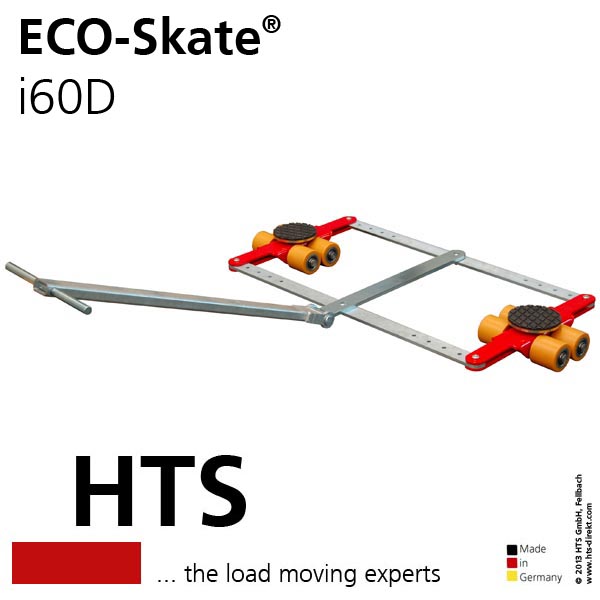

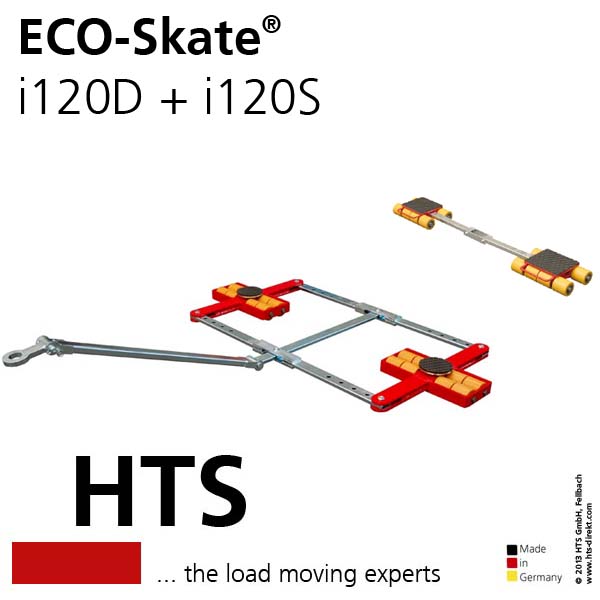

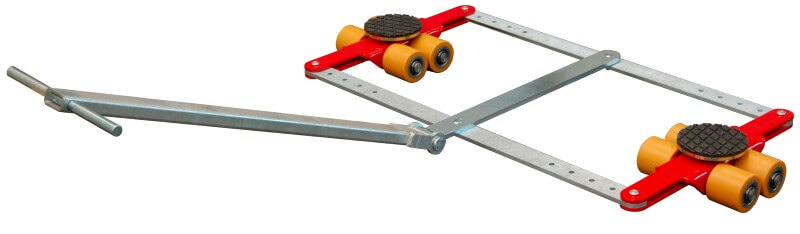

Click an image to enlarge →Machine Moving Skate i60DMachine Moving Skate i120DMachine Moving Skate i120D and i120S Set
Typei60Di120Di120D and i120S Set
Part number10.060.00.3010.120.00.30i120D & i120S as a set
Capacity (lbs.)2 x 6,6002 x 13,20052,800 lbs.
Wheels size (inch)3.3" X 3.4"3.3" X 3.4"
Number of wheels2 x 42 x 8
Load area (inch)2 x 5.9"2 x 5.9"
Dimensions L x W x H (inch)25.8" X 50.4" X 4.3"37.1" X 70.2" X 4.3"
Handle length (inch)47.2"47.2"
Adjustability (inch)5 x 22" to 39"5 x 27" to 51"
Weight (lbs.)104210
drawingdrawing

48 tons

96 tons as set

Scroll Down

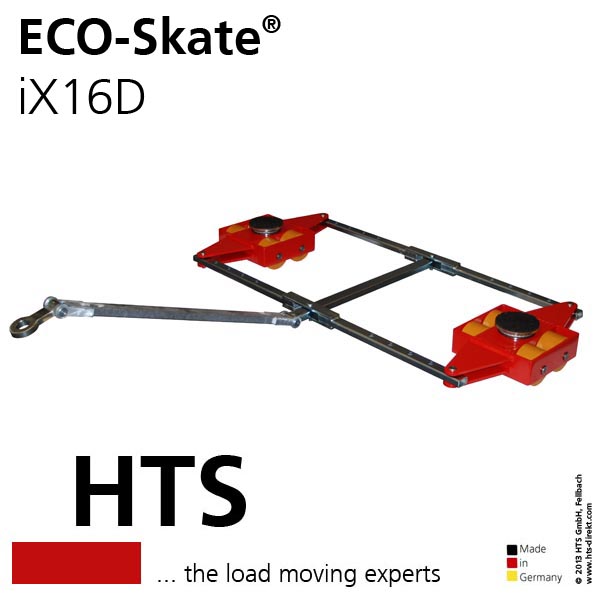

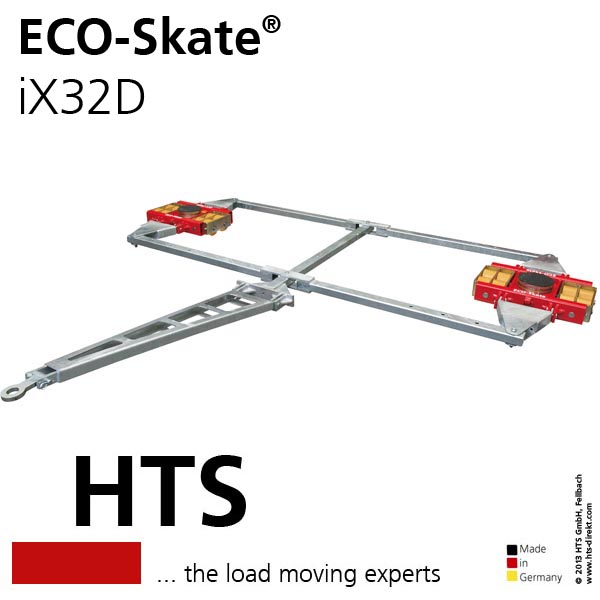

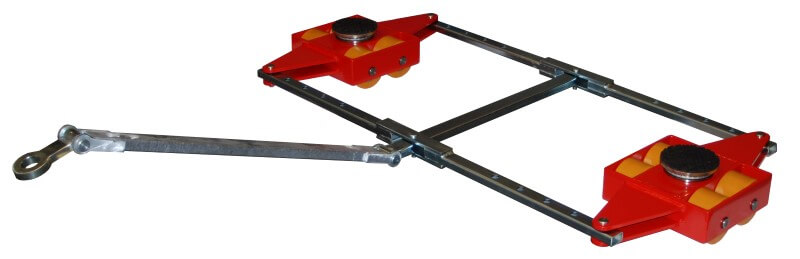

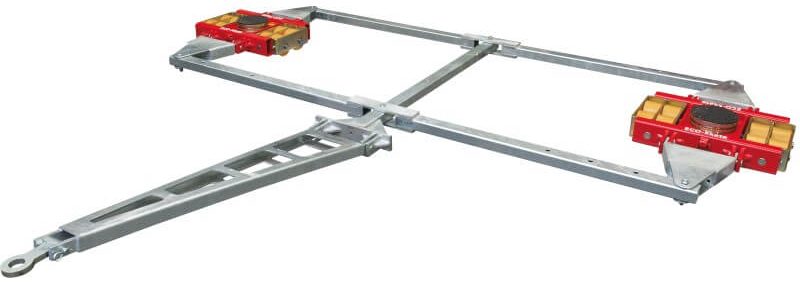

Click an image to enlarge →Machine Moving Skate iX16DMachine Moving Skate iXD32
TypeiX16DiX32DiX48D
Part number10.160.02.3010.320.02.3010.480.02.30
Capacity (lbs.)2 x 17,6302 x 35,2002x 52,800
Wheels size (inch)5.5" X 3.3"5.5" X 3.3"5.5" X 3.3"
Number of wheels2 x 42 x 82 x 12
Load area (inch)2 x 6.7"2 x 8.6"2 x Ø 8.6"
Dimensions L x W x H (inch)37" X 73.9" X 7.1"72.7" X 103.7" X 7.1"72.7" X 103.3" X 7.1"
Handle length (inch)59"59"59"
Adjustability (inch)4 x 28" to 59"4 x 51" to 75"4 x 63" to 86"
Weight (lbs.)286880770
drawingdrawingdrawing

Features

The ECO-Skate DUO can be combined with other ECO-Skate i-Series, ROTO or i-Series XL to provide a 4-point load moving system. They are designed for extra long or wide machines or a high located barycenter where a 3-point load system does not work.

Load moving systems of the ECO-Skate DUO-Series have the following features

  • Steering and alignment bar
    The DUO-Series load moving systems are standard equipped with steering and alignment bars. Special lengths are available on request.
  • Combinable
    All ECO-Skate DUO-Series load moving systems can be combined with all other suitable skate systems such as ROTO and i-Series or i-Series XL and BALANCE. The sum of each skate equals the total carrying capacity.
  • HTS Polyurethane wheels
    All skates are standard equipped with HTS Polyurethane wheels. They are available as spare parts for other manufactured skates as well. On request and if the floor allows it we can supply all skates with Nylon wheels.
  • Special attachments can be produced upon request i.e. for ISO Containers etc.

For all cases where a standard product is not sufficient, we offer special tailor made solutions to fit the customers needs.

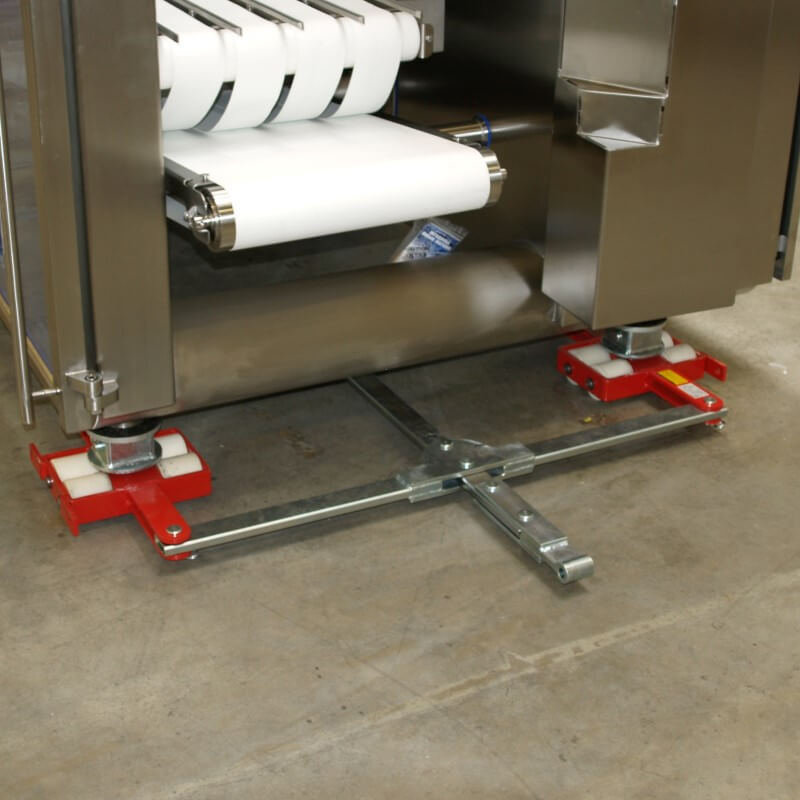

iN60D Sonder Original

Made in Germany
