POWER-Skate_PSX20-40_H

Powered load moving systems with integrated hydraulic lift for production lines

Rethink your production lines with the radio remote controlled, semi-automatic POWER-Skate® XL 20-40 H. It can be used to move loads weighing up to 40 tons within production lines by radio remote control without the need for additional pushing or pulling equipment. The machines to be produced stand on the adjustable rear skates and two support blocks in the front. The POWER-Skate® XL 20-40 H is moved underneath the machine, extends the cylinder and lifts the machine. On this secure three point system, simultaneous driving and steering in three speeds as well as safe positioning are made possible by the Single-Joystick system of the remote control and proportionally executed. The next assembly station or at the end the shipping area can be reached smoothly and safe.

Powered by state-of-the-art 48 V, 60 Ah lithium iron phosphate battery technology and with a run time of up to 5 hours. The advanced POWER-Skate® XL 20-40 Drive Syncron motor runs energy-efficiently and is fully digitally controlled by the POWER-Skate® XL 20-40 Drive Control PSC5 motor controller. Space-saving gears located in the drive rollers make the POWER-Skate® XL 20-40 an overall very compactly built means of transport with small external dimensions and a low 180 mm installation height. All ECO-Skate® XL series trolleys with nylon rollers have the same identical insertion height of 180 mm. Existing transport trolleys can therefore be used with the POWER-Skate® XL 20-40 H.

The following distinguishes the transport trolleys of the POWER-Skate® H series:

  • Compact design with small external dimensions
  • Fully integrated hydraulic lifting system
  • Flexible pick-up and the possibility to take out a machine of production line when needed
  • Easy steering and perfect straight drive by direct proportional control with Single-Joystick control
  • Powerful digitally controlled Syncron motors
  • Combinable with all undercarriages of the ECO-Skate® XL series
  • Ideal for use in confined spaces, as the towing vehicle is not required

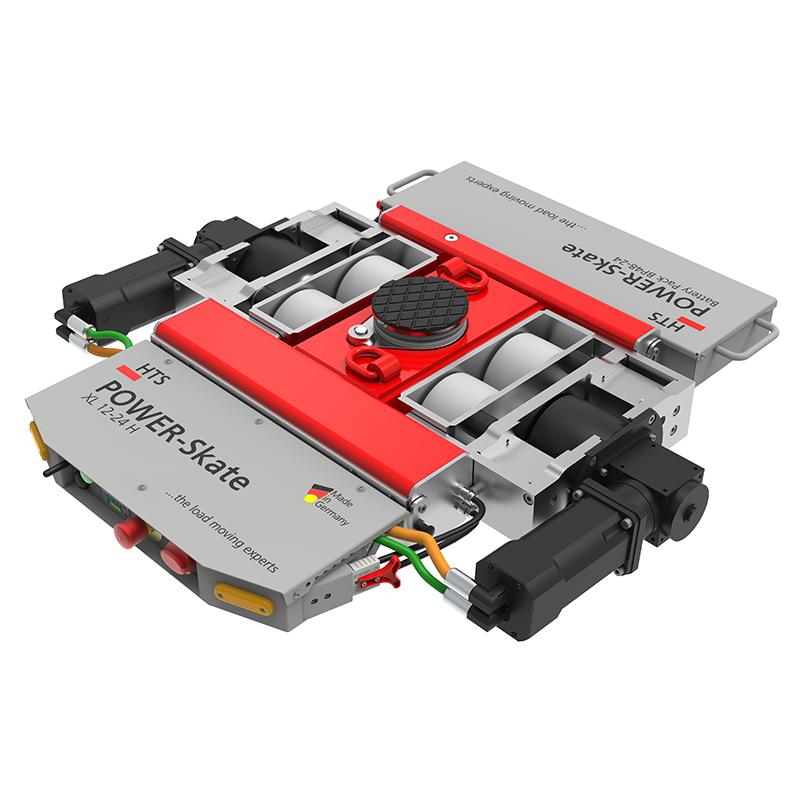

PSX 12‑24 H

POWER-Skate-XL-PSX-12-24-H
Article Number10.120.52.10
Max. Capacity12000
kg
Wheels + Support Wheels 4 + 2
pc./pcs.
Wheel Size: Outer Diameter x Width / Bearing Diameter Ø 140 x 83 / Ø 30
mm
Load Area DiameterØ 150
mm
Dimensions: Length x Width x Height1047 x 1100 x 180
mm
Weight200
kg

XN20S‑B

ECO-Skate-XL-XN20S-B
Article Number10.200.55.20
Load Areas x Max. Capacity2 x 10000
kg
Wheels 2 x 4
pc./pcs.
Wheel Size: Outer Diameter x Width / Bearing DiameterØ 85 x 87 / Ø 25
mm
Load Areas x (Length x Width)2 x (320 x 192)
mm
Adjustability220 – 1800
mm
Dimensions: Length x Width x Height464 x 215 x 180
mm
Weight80
kg

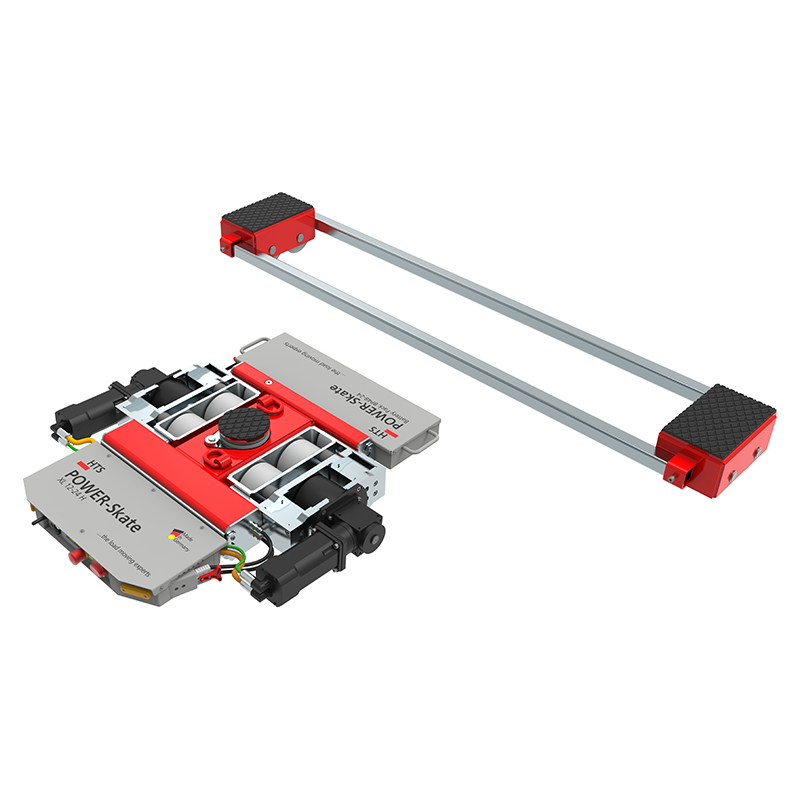

PSX 12‑24 H + XN20S‑B Set

XN20S-B

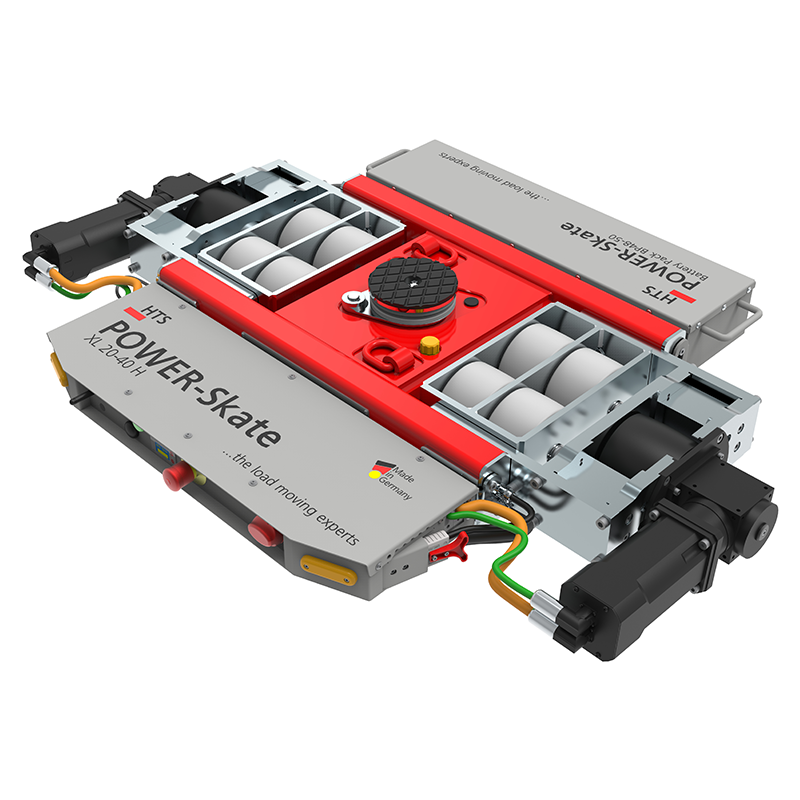

PSX 20‑40 H

POWER-Skate-XL-PSX-20-40-H
Article Number10.202.52.10
Max. Capacity20000
kg
Wheels + Support Wheels8 + 2
pc./pcs.
Wheel Size: Outer Diameter x Width / Bearing DiameterØ 140 x 83 / Ø 30
mm
Load Area DiameterØ 150
mm
Dimensions: Length x Width x Height1380 x 1000 x 180
mm
Weight325
kg

XN20S‑B

ECO-Skate-XL-XN20S-B
Article Number10.200.55.20
Load Areas x Max. Capacity2 x 10000
kg
Wheels + Support Wheels2 x 4
pc./pcs.
Wheel Size: Outer Diameter x Width / Bearing DiameterØ 85 x 87 / Ø 25
mm
Load Areas x (Length x Width)2 x (320 x 192)
mm
Adjustability220 – 1800
mm
Dimensions: Length x Width x Height464 x 215 x 180
mm
Weight80
kg

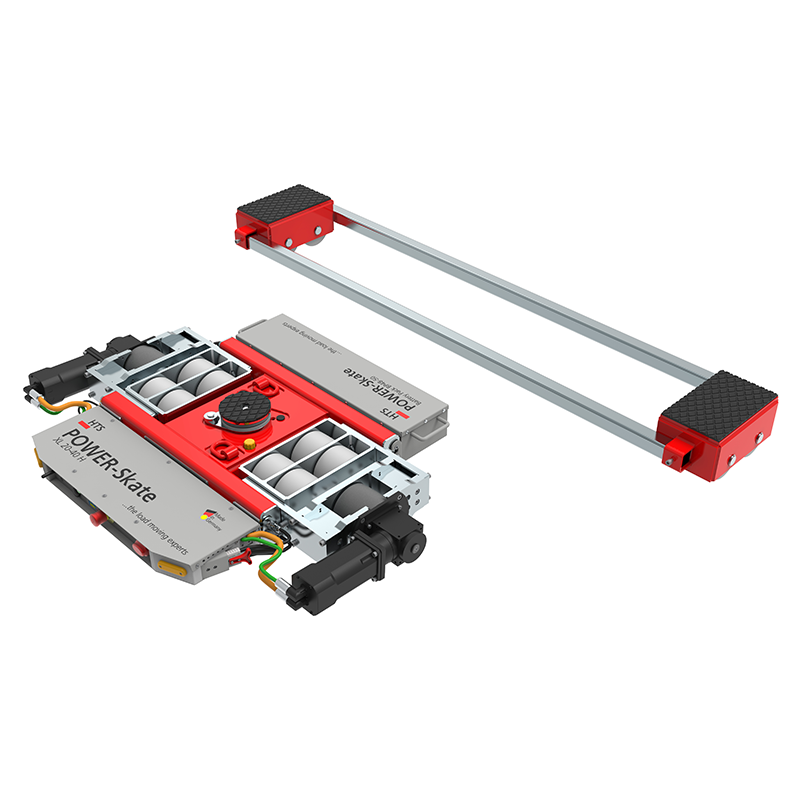

PSX 20‑40 H + XN20S‑B Set

POWER-Skate-XL-PSX-20-40-H-XN20S-B-Set
Max. Capacity40000
kg
