ECO-Skate ROTO

360° rotational skates

360° Skates with polyurethane wheels from 2.4 to 4.0 tons capacity

Scroll Down
Click an image to enlarge →R24R32R40
TypeR24R32R40
Part number10.024.00.4010.032.00.4010.040.00.40
Capacity (lbs.)5,2807,0508,800
Wheel size (inch), material3.3" X 3.4" Polyurethane3.3" X 3.4" Polyurethane3.3" X 3.4" Polyurethane
Number of wheels345
Load area (inch)5.9"6.7"8.6"
Dimensions L/L* x W x H (inch)15.3"/17.6" X 16.3" X 4.3"16.9"/19.2" X 16.3" X 4.3"21.9"/24.4" X 22.3" X 4.3"
Weight (lbs.)446693

360° Skates with polyurethane wheels and adapter for alignment or steering bars from 2.4 to 4.0 tons capacity

Scroll Down

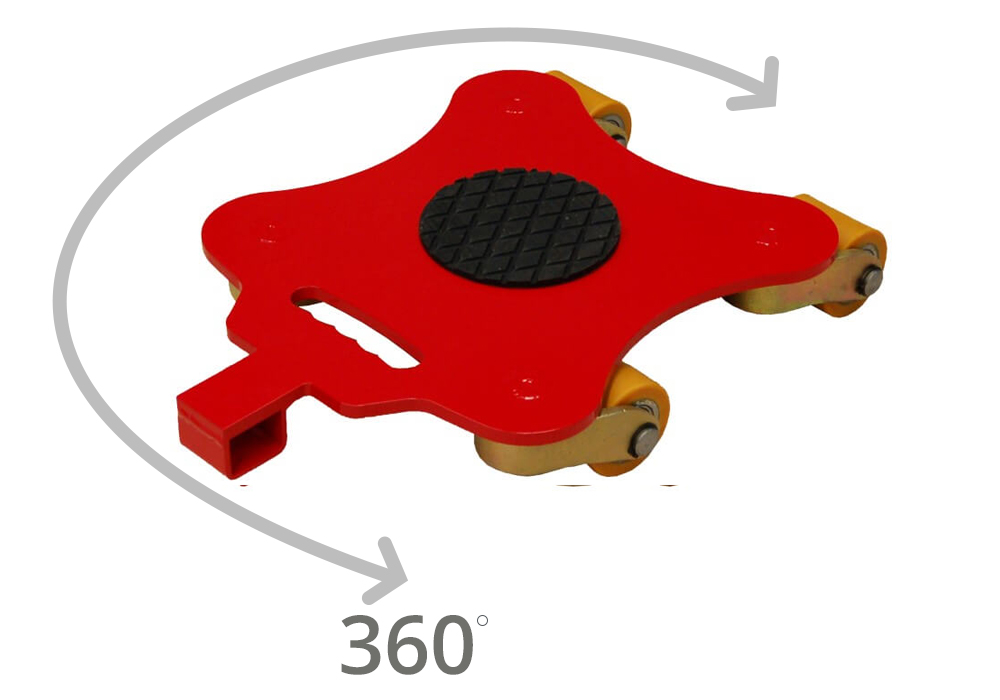

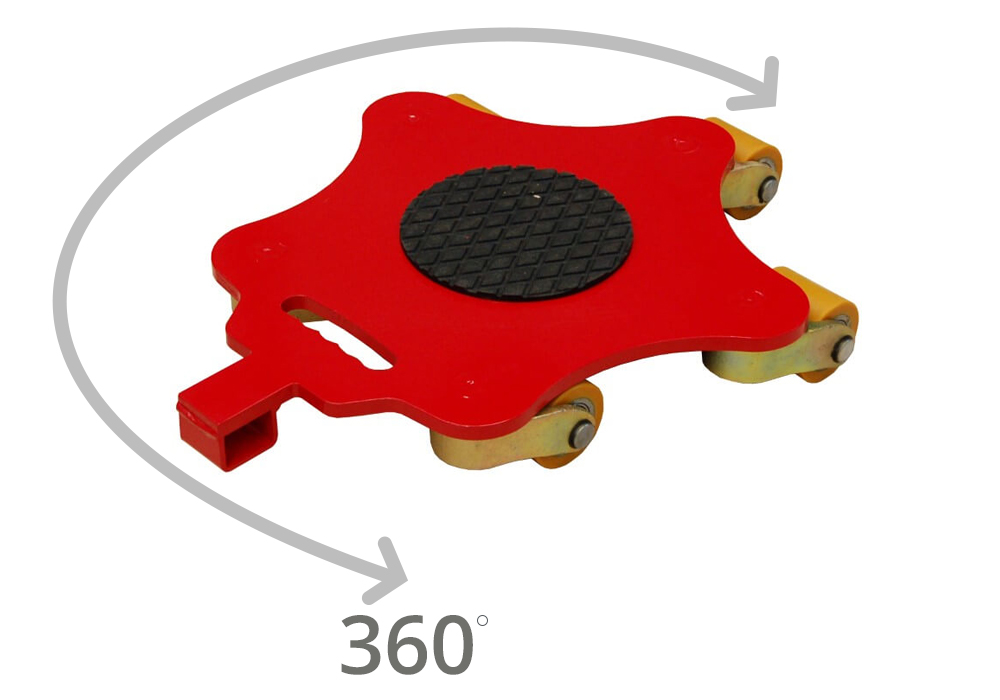

R24LSR32LSr40ls
TypeR24LSR32LSR40LS
Part number10.024.00.4110.032.00.4110.040.00.41
Capacity (lbs.)5,2807,0508,800
Wheel size (mm), material3.3" X 3.4" Polyurethane3.3" X 3.4" Polyurethane3.3" X 3.4" Polyurethane
Number of wheels345
Load area (inch)5.9"6.7"8.6"
Dimensions L/L* x W x H (inch)20.3"/22.6" X 16.3" X 4.3"21.9"/24.3" X 16.3" X 4.3"26.5"/29" X 22.3" X 4.3"
Weight (lbs.)466897

ECO-Skate ROTO RX Series 360° Skate 6 ton capacity

also available nickel plated for clean room applications

Scroll Down
Click an image to enlarge →RX6LSCR Series
TypeRX6LSCR-Series
Part number10.060.02.41

Find out more about our nickle plated skates which can be used in clean rooms and the food industry.

Capacity (lbs.)13,200
Wheel size (mm), material5.5" X 5.3" Polyurethane
Number of wheels3
Lockable WheelsYes
Load area (inch)10"
Dimensions L/L* x W x H (inch)36.3"/39.3" X 25.6" X 7.1"
Weight (lbs)89

*L=Length with wheel facing to the back outside the frame

Options for ECO-Skate ROTO LS 360° Skates

Scroll Down
ROTO Deichsel NUR GriffROTO Deischel Anhaengeoese Adapter BolzenROTO Deischel Anhaengeoese Adapter GriffROTO VerbindungsstangeROTO Verbindungsstange mit Aufnahme
Type
Part number100.009.030100.009.035100.009.036940.620.920940.025.200
Dimensions13.7" x 1.2" x 39.4"3.9" x 1.2" x 43.3"13.7" x 1.2" x 43.3"1.6" x 1" x 78.7"2.75" x 1" x 78.7"
DescriptionSteering bar with Handle and ROTO adapterSteering bar with pulling eye and ROTO adapterSteering bar with handle and pulling eye and ROTO adapterAlignment bar ROTO*Alignment bar ROTO with a steering bar connector*

*other sizes on request, **Pictures show additional equipment

Features

ECO-Skate ROTO 360° Skates

An ECO-Skate ROTO System has a minimum of four Skates. The ROTO skates can be combined with all other suitable ECO-Skates. The load can be rotated by 360° for greater flexibility in positioning and easier to move.

Features

ECO-Skate R Series ROTO Skates

  • Combinable
    All ECO-Skate ROTO load moving systems can be combined with the ECO-Skate ROTO RN, i-Series, iN-Series or DUO. The sum from each skate equals the total carrying capacity.
  • HTS polyurethane wheels
    All skates are standard equipped with wear resistant HTS polyurethane wheels, which are ideal for uneven floors. They are available as spare parts for other manufactured skates as well.
  • Steering and alignment bar
    The ROTO LS series is equipped with an adapter for steering and alignment bars. Special lengths are available on request.
  • Foldable alignment bar
    The ROTO LS alignment bars are foldable and is supplied on request.

For all cases where a standard product is not sufficient, we offer special tailor made solutions to fit the customer’s needs.

R24

ECO-Skate Specially Designed for the Food Industry

Scroll Down

Machine Moving Skate IRN60SFood Industry Machine Moving ROTO Skates

Special tailor made solution for a customer in the food industry where machines had to be move fast and flexible out of production lines and after service back into the production lines.

Heavy load 360° ROTO Skate with a 6 ton carrying capacity and integrated lifting solution. Controlled by an external pump and linked to a ECO-Jack SYNCRO pressure block, for synchronized lifting and lowering. The wheels can be blocked for better manoeuvrability and the single skates can be linked with alignment bars.

Made in Germany
