POWER-Skate_PSX20-40_H

Battery Powered Load Moving Skates

With the POWER-Skate® XL 20-40 loads up to 40 tonnes can be moved by remote control without any additional push or pull means. On three points of support, simultaneous driving and steering at up to 8 m/min. Speed and safe positioning is possible with the one-joystick proportional function of the remote control. Powered by state-of-the-art 48 V, 60 Ah lithium-iron phosphate battery technology and with a running time of at least 3 hours under maximum load.

The advanced POWER-Skate® XL 20-40 Drive synchronous engine runs energy-saving and is fully digitally controlled by the POWER-Skate® XL 20-40 Drive Control PSC5 motor control. Space-saving gearboxes in the drive wheels make the POWER-Skat® XL 20-40 an extremely compact vehicle with small external dimensions and a low installation height of only 180 mm. All of the ECO-Skate® XL series skates with nylon wheels have the identical insertion height of 180 mm. Existing transport trolleys can therefore be used with the POWER-Skate® XL 20-40.

The following distinguishes the POWER-Skate®:

  • Compact design with small external dimensions
  • Simple steering with only one joystick
  • Powerful digitally controlled engines
  • Any existing XL-series can be combined
  • Ideal for applications when space is narrow (no need for pull means)

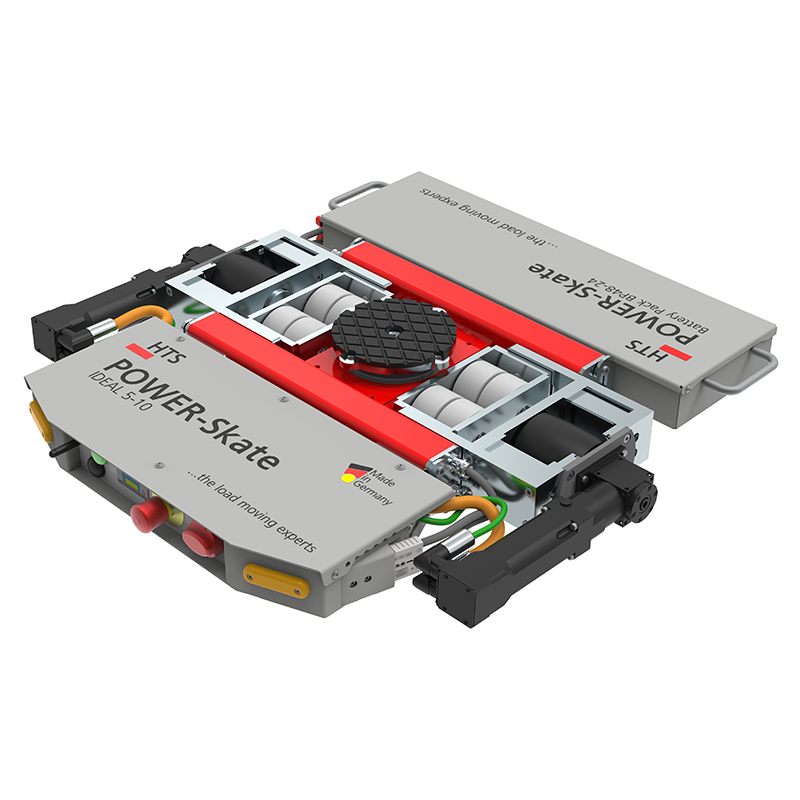

PSI 5‑10

POWER-Skate-IDEAL-PSI-5‑100
Article Number10.050.51.10
Max. Capacity5000
kg
Wheels + Support Wheels 8 + 2
pc./pcs.
Wheel Size: Outer Diameter x Width / Bearing DiameterØ 85 x 43.5 / Ø 25
mm
Load Area DiameterØ 170
mm
Dimensions: Length x Width x Height866 x 879 x 110
mm
Weight93
kg

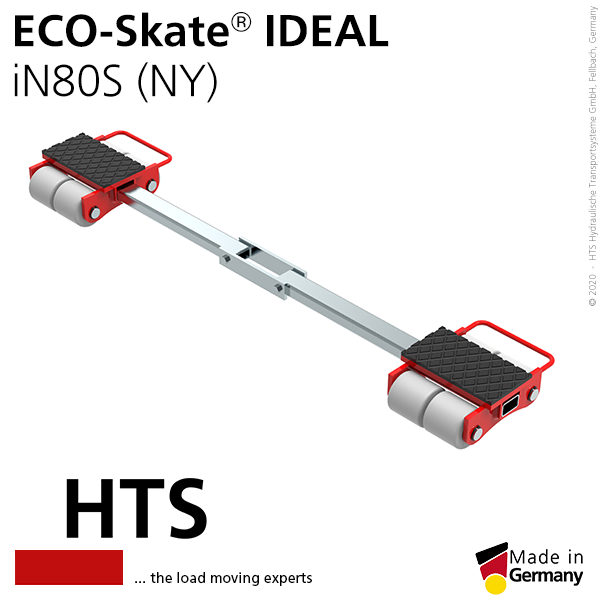

iN80S

ECO-Skate-IDEAL-iN80S-NY-174px
Article Number10.080.01.20
Load Areas x Max. Capacity2 x 4000
kg
Wheels 2 x 4
pc./pcs.
Wheel Size: Outer Diameter x Width / Bearing Diameter Ø 85 x 87 / Ø 25
mm
Load Areas x (Length x Width)2 x (120 x 220)
mm
Adjustability420 – 1100
mm
Dimensions: Length x Width x Height291 x 220 x 110
mm
Weight25
kg

PSI 5‑10 + iN80S Set

POWER-Skate-IDEAL-PSI-5‑10-iN80S-Set
Max. Capacity10000
kg

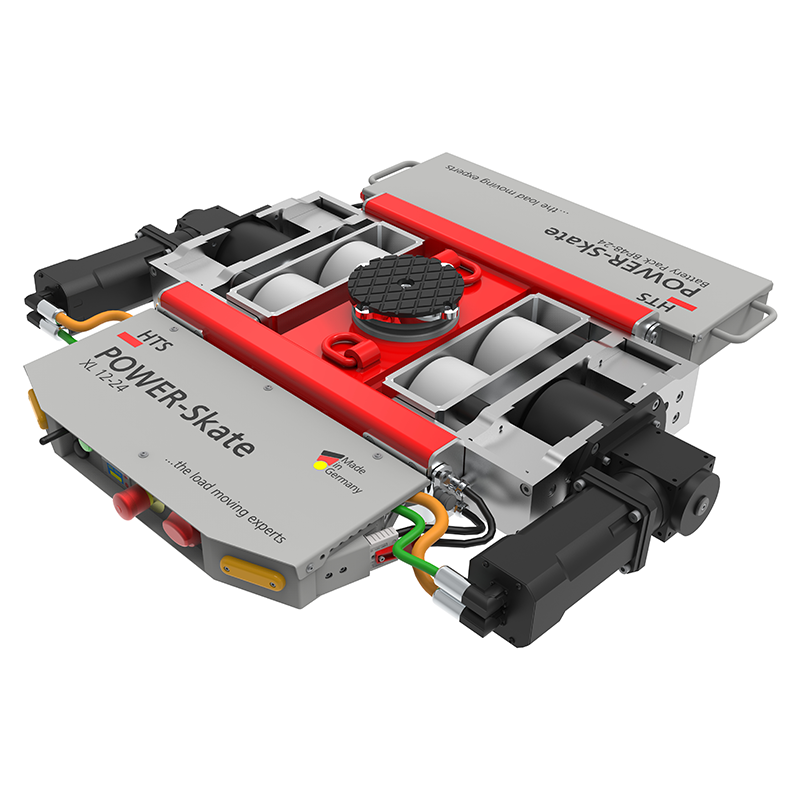

PSX 12‑24

POWER-Skate-XL-PSX-12-24
Article Number10.121.51.10
Max. Capacity12000
kg
Wheels + Support Wheels4 + 2
pc./pcs.
Wheel Size: Outer Diameter x Width / Bearing DiameterØ 140 x 85 / Ø 30
mm
Load Area DiameterØ 170
mm
Dimensions: Length x Width x Height1047 x 1036 x 180
mm
Weight175
kg

XN20S‑B

ECO-Skate-XL-XN20S-B
Article Number10.200.55.20
Load Areas x Max. Capacity2 x 10000
kg
Wheels + Support Wheels2 x 4
pc./pcs.
Wheel Size: Outer Diameter x Width / Bearing DiameterØ 85 x 87 / Ø 25
mm
Load Areas x (Length x Width)2 x (320 x 192)
mm
Adjustability220 – 1800
mm
Dimensions: Length x Width x Height464 x 215 x 180
mm
Weight80
kg

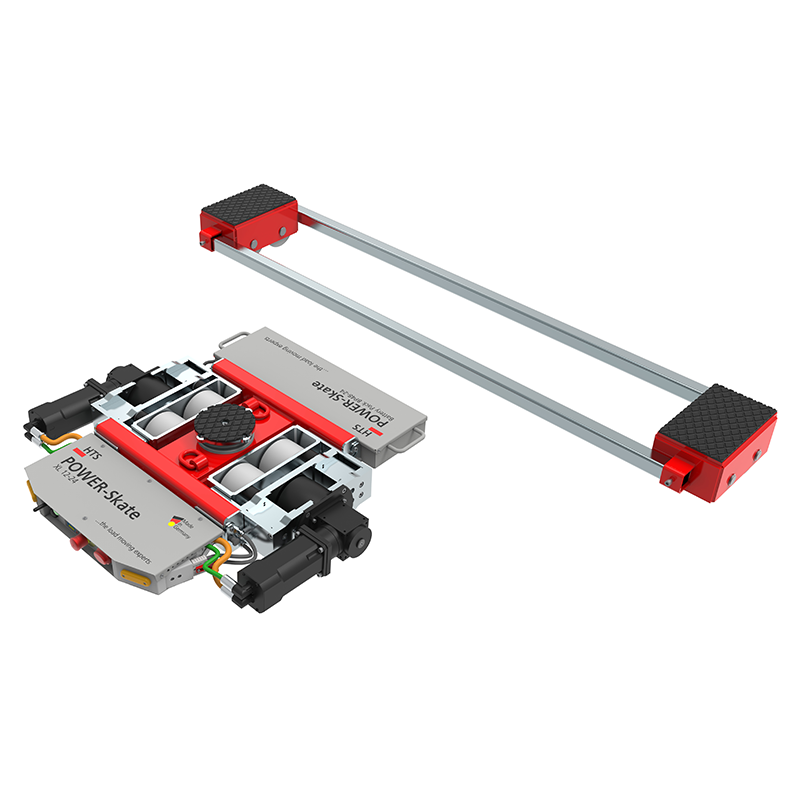

PSX 12‑24 + XN20S‑B Set

POWER-Skate-XL-PSX-12-24-XN20S-B-Set
Max. Capacity24000
kg

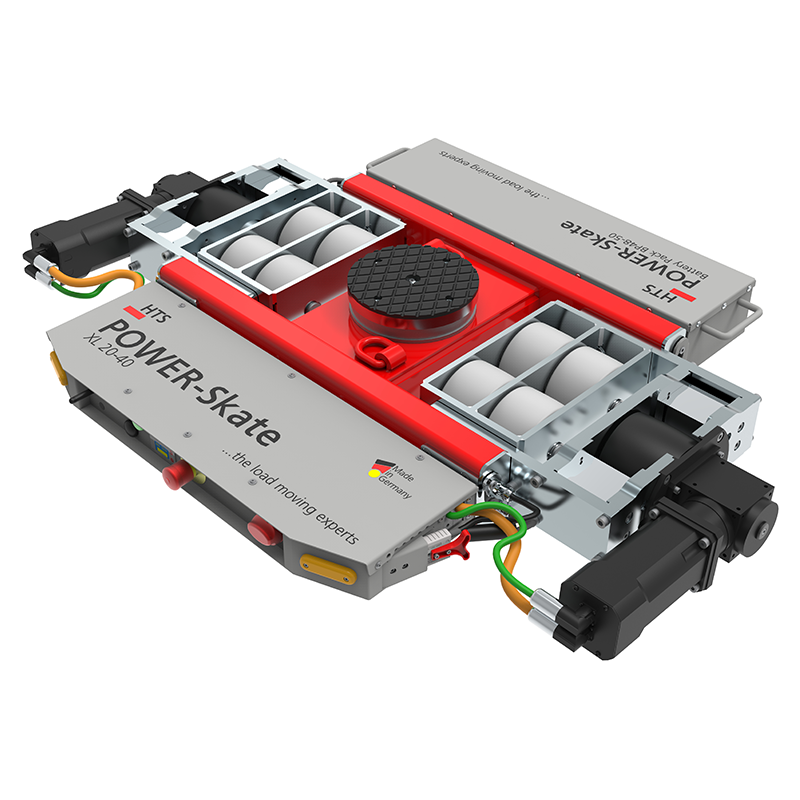

PSX 20‑40

POWER-Skate-XL-PSX-20-40
Article Number10.202.51.10
Max. Capacity20000
kg
Wheels + Support Wheels 8 + 2
pc./pcs.
Wheel Size: Outer Diameter x Width / Bearing DiameterØ 140 x 83 / Ø 30
mm
Load Area Diameter Ø 220
mm
Dimensions: Length x Width x Height1380 x 1000 x 180
mm
Weight300
kg

XN20S‑B

ECO-Skate-XL-XN20S-B
Article Number10.200.55.20
Load Areas x Max. Capacity2 x 10000
kg
Wheels + Support Wheels2 x 4
pc./pcs.
Wheel Size: Outer Diameter x Width / Bearing DiameterØ 85 x 87 / Ø 25
mm
Load Areas x (Length x Width)2 x (320 x 192)
mm
Adjustability220 – 1800
mm
Dimensions: Length x Width x Height464 x 215 x 180
mm
Weight80
kg

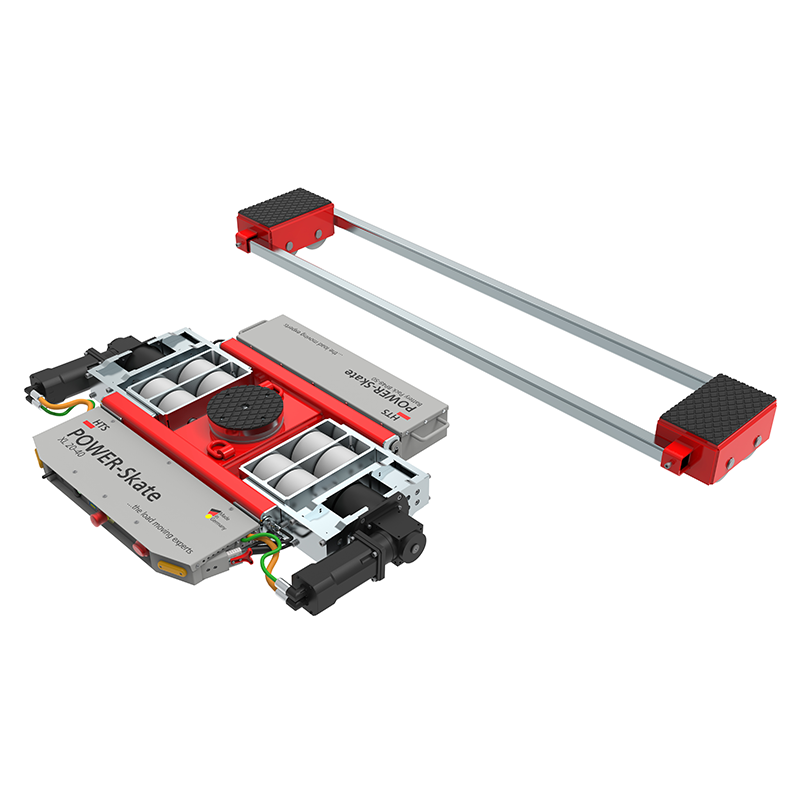

PSX 20‑40 + XN20S‑B Set

POWER-Skate-XL-PSX-20-40-XN20S-B-Set
Max. Capacity40000
kg
