Multi directional transports with powered load moving skates

PSX 12‑24

POWER-Skate-XL-PSX-12-24
Article Number10.121.51.10
Max. Capacity12000
kg
Wheels + Support Wheels4 + 2
pc./pcs.
Wheel Size: Outer Diameter x Width / Bearing DiameterØ 140 x 85 / Ø 30
mm
Load Area DiameterØ 170
mm
Dimensions: Length x Width x Height1047 x 1036 x 180
mm
Weight175
kg

PSX 20‑40

POWER-Skate-XL-PSX-20-40
Article Number10.202.51.10
Max. Capacity20000
kg
Wheels + Support Wheels 8 + 2
pc./pcs.
Wheel Size: Outer Diameter x Width / Bearing DiameterØ 140 x 83 / Ø 30
mm
Load Area Diameter Ø 220
mm
Dimensions: Length x Width x Height1380 x 1000 x 180
mm
Weight300
kg

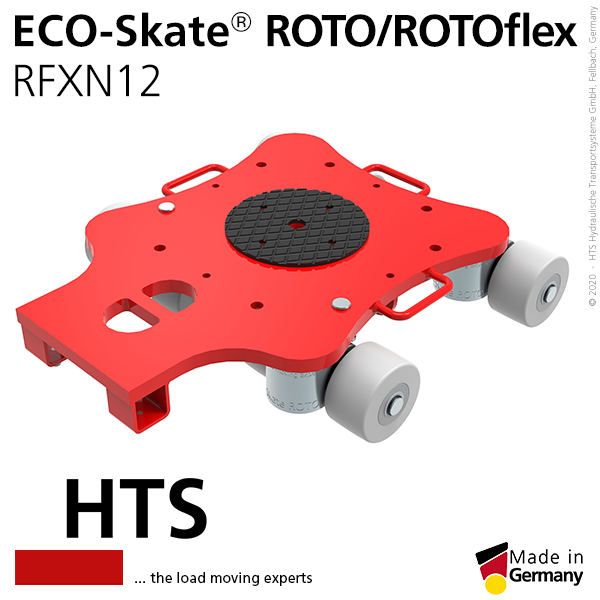

RFXN12 (NY)

Roto RFXN12
Article Number10.120.03.41
Max. Capacity12000
kg
Wheels8
pc./pcs.
Wheel Size: Outer Diameter x Width / Bearing DiameterØ 140 x 85 / Ø 30
mm
Load Area DiameterØ 250
mm
Handle Length1620
mm
Adjustability1000 – 1440
mm
Dimensions: Length x Width x Height830 x 710 x 180
mm
Weight120
kg

PSX 12‑24 DUO + RFXN12 Set

POWER-Skate-XL-PSX-12-24-DUO-RFXN12-Set
Max. Capacity48000
kg

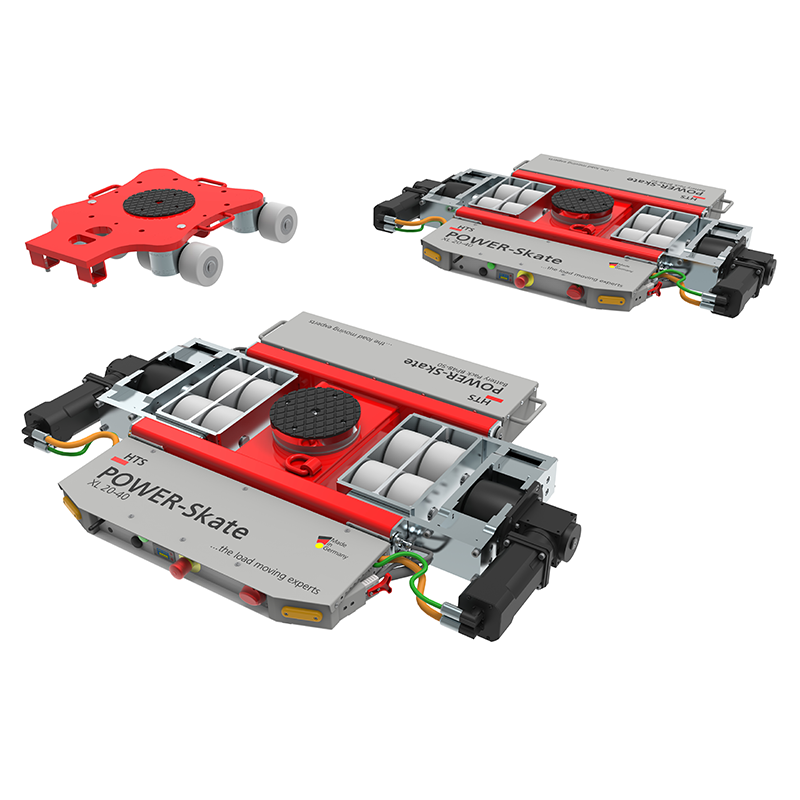

PSX 20‑40 DUO + RFXN12 Set

POWER-Skate-XL-PSX-20-40-DUO-RFXN12-Set (1)
Max. Capacity80000
kg
